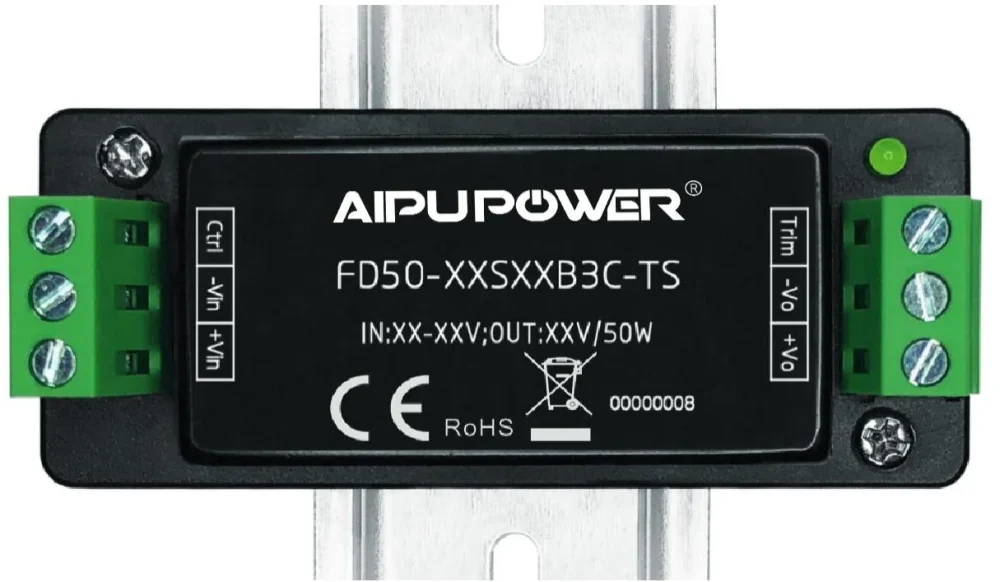

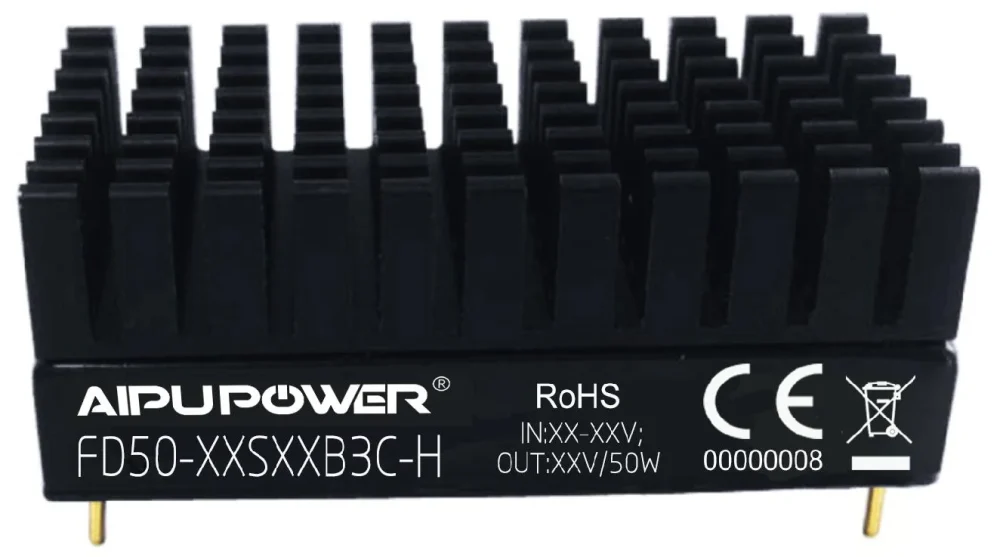

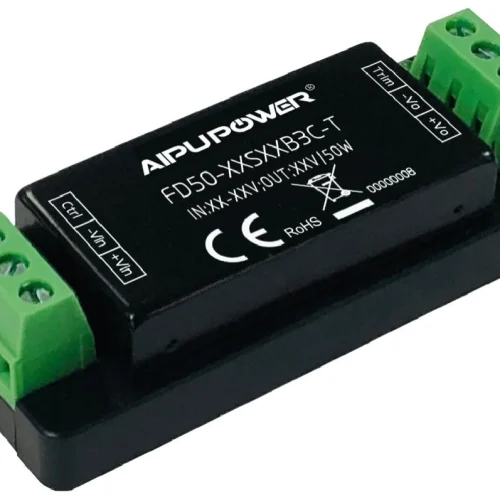

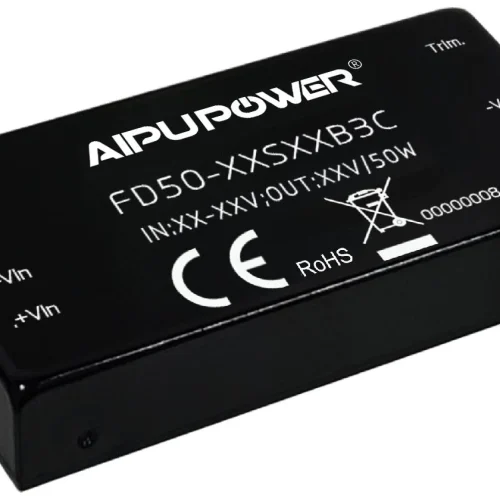

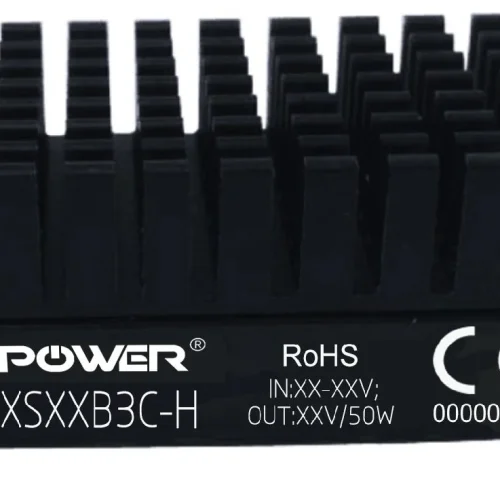

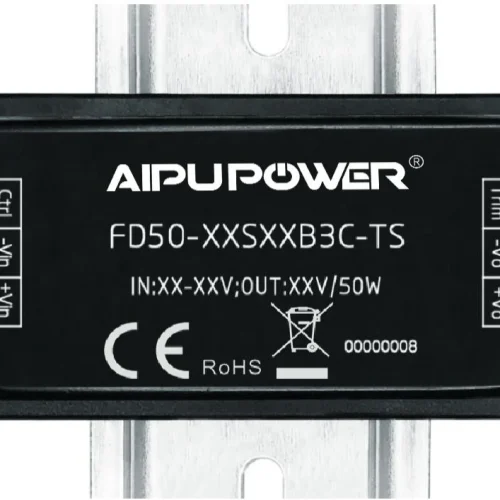

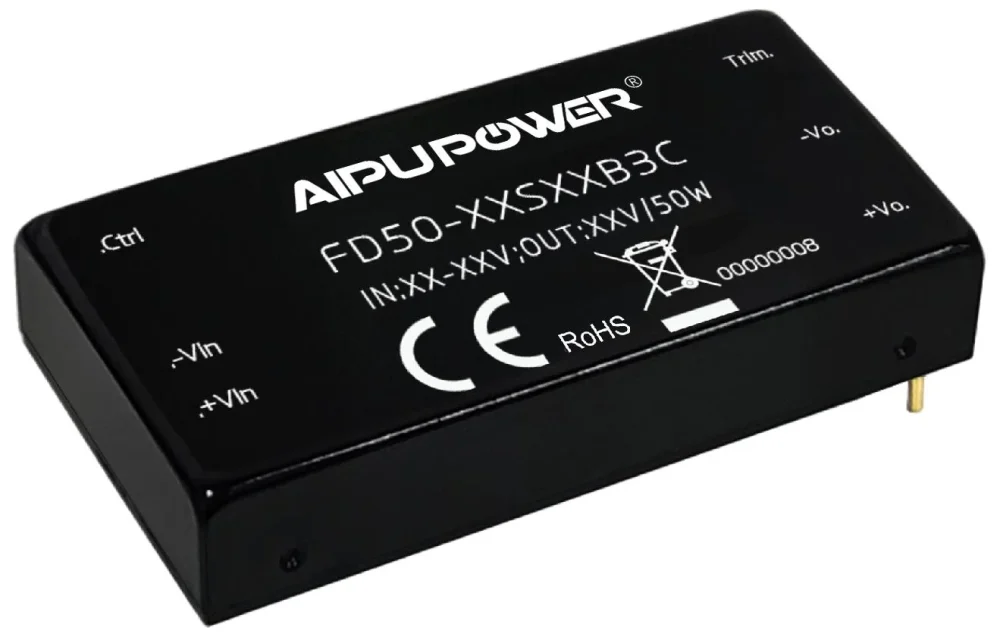

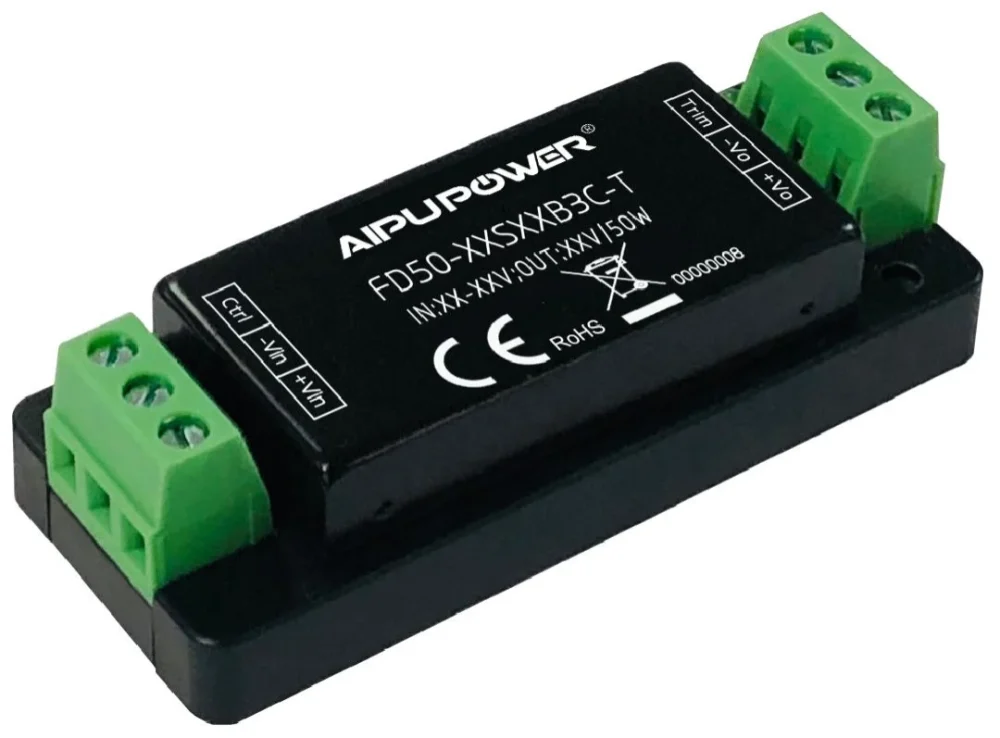

FD50-XXSXXB3(C)
FD50-XXSXXB3(C) series DC-DC DIP power module, 10 model(s).
The FD50-XXSXXB3(C) series is a family of DC-DC DIP power modules rated 39.6w / 50w / 33w with wide input 18-36.
- FD50-24S3V3B3(C): 3.3V / 12000mA output (39.6wW)
- FD50-24S05B3(C): 5V / 10000mA output (50wW)
- FD50-24S12B3(C): 12V / 4160mA output
- FD50-24S15B3(C): 15V / 3333mA output
- FD50-24S24B3(C): 24V / 2080mA output
- FD50-48S3V3B3(C): 3.3V / 10000mA output (33wW)
- FD50-48S05B3(C): 5V / 10000mA output (50wW)
- FD50-48S12B3(C): 12V / 4160mA output
- FD50-48S15B3(C): 15V / 3333mA output
- FD50-48S24B3(C): 24V / 2080mA output
Datasheet, samples and OEM/ODM support available on request.
| Part Number | Power | Input Voltage | Output Voltage | Output Current | Isolation Voltage | Size | Package | No. of Outputs |
|---|---|---|---|---|---|---|---|---|
| FD50-24S3V3B3(C) | 39.6W | 18-36 | 3.3V | 12000mA | 1500 | 50.8*25.4*9.5 | DIP | 1 |
| FD50-24S05B3(C) | 50W | 18-36 | 5V | 10000mA | 1500 | 50.8*25.4*9.5 | DIP | 1 |
| FD50-24S12B3(C) | 50W | 18-36 | 12V | 4160mA | 1500 | 50.8*25.4*9.5 | DIP | 1 |
| FD50-24S15B3(C) | 50W | 18-36 | 15V | 3333mA | 1500 | 50.8*25.4*9.5 | DIP | 1 |
| FD50-24S24B3(C) | 50W | 18-36 | 24V | 2080mA | 1500 | 50.8*25.4*9.5 | DIP | 1 |
| FD50-48S3V3B3(C) | 33W | 36-75 | 3.3V | 10000mA | 1500 | 50.8*25.4*9.5 | DIP | 1 |
| FD50-48S05B3(C) | 50W | 36-75 | 5V | 10000mA | 1500 | 50.8*25.4*9.5 | DIP | 1 |
| FD50-48S12B3(C) | 50W | 36-75 | 12V | 4160mA | 1500 | 50.8*25.4*9.5 | DIP | 1 |
| FD50-48S15B3(C) | 50W | 36-75 | 15V | 3333mA | 1500 | 50.8*25.4*9.5 | DIP | 1 |
| FD50-48S24B3(C) | 50W | 36-75 | 24V | 2080mA | 1500 | 50.8*25.4*9.5 | DIP | 1 |
| Total | 10 models in this series | |||||||
