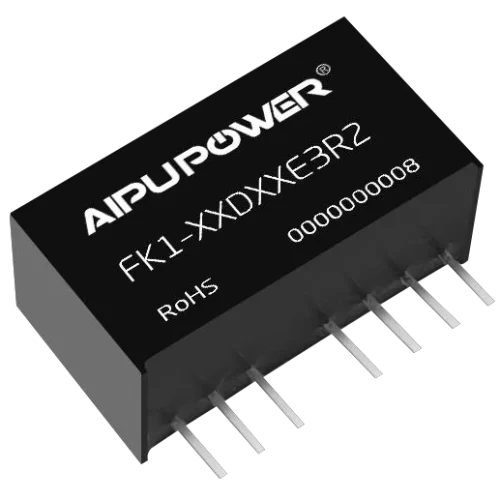

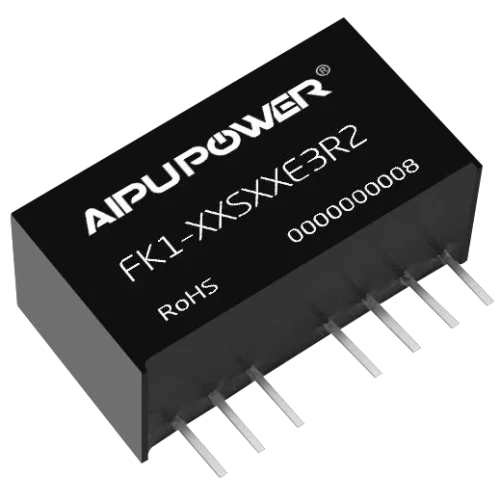

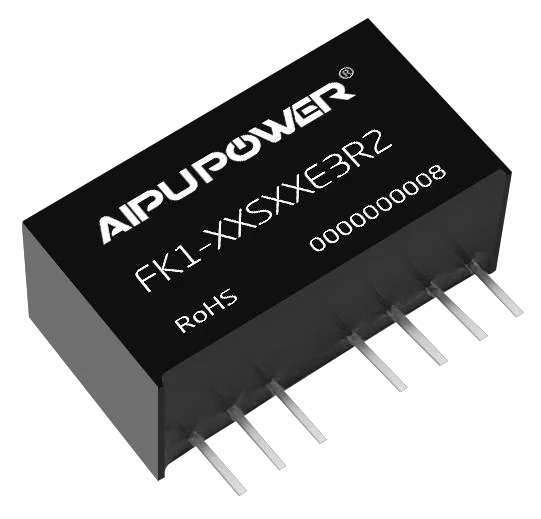

FK1-XXXXE3R2 series DC-DC SIP power module, 82 model(s).

Quick Inquiry
SKU: FK1-XXXXE3R2 Category:

The FK1-XXXXE3R2 series is a family of DC-DC SIP power modules rated 1w / 3w with wide input 4.5-9.

  • FK1-05S3V3E3R2: 3.3V / 303mA output (1wW)
  • FK1-05S05E3R2: 5V / 200mA output
  • FK1-05S09E3R2: 9V / 111mA output
  • FK1-05S12E3R2: 12V / 84mA output
  • FK1-05S15E3R2: 15V / 67mA output
  • FK1-05S24E3R2: 24V / 42mA output
  • FK1-05D3V3E3R2: ±3.3V / +-151mA output
  • FK1-05D05E3R2: ±5V / ±100mA output
  • FK1-05D12E3R2: ±12V / ±42mA output
  • FK1-05D15E3R2: ±15V / ±33mA output
  • FK1-05D1524E3R2: +-24V / +-21mA output
  • FK1-12S3V3E3R2: 3.3V / 303mA output
  • FK1-12S05E3R2: 5V / 200mA output
  • FK1-12S12E3R2: 12V / 84mA output
  • FK1-12S15E3R2: 15V / 67mA output
  • FK1-12S24E3R2: 24V / 42mA output
  • FK1-12D3V3E3R2: ±3.3V / +-151mA output
  • FK1-12D05E3R2: ±5V / ±100mA output
  • FK1-12D12E3R2: ±12V / ±42mA output
  • FK1-12D15E3R2: ±15V / ±33mA output
  • FK1-12D24E3R2: +-24V / +-21mA output
  • FK1-24S3V3E3R2: 3.3V / 303mA output
  • FK1-24S05E3R2: 5V / 200mA output
  • FK1-24S12E3R2: 12V / 84mA output
  • FK1-24S15E3R2: 15V / 67mA output
  • FK1-24S24E3R2: 24V / 42mA output
  • FK1-24D3V3E3R2: ±3.3V / +-151mA output
  • FK1-24D05E3R2: ±5V / ±100mA output
  • FK1-24D12E3R2: ±12V / ±42mA output
  • FK1-24D15E3R2: ±15V / ±33mA output
  • FK1-24D24E3R2: +-24V / +-21mA output
  • FK1-48S3V3E3R2: 3.3V / 303mA output
  • FK1-48S05E3R2: 5V / 200mA output
  • FK1-48S12E3R2: 12V / 84mA output
  • FK1-48S15E3R2: 15V / 67mA output
  • FK1-48S24E3R2: 24V / 42mA output
  • FK1-48D3V3E3R2: ±3.3V / +-151mA output
  • FK1-48D05E3R2: ±5V / ±100mA output
  • FK1-48D12E3R2: ±12V / ±42mA output
  • FK1-48D15E3R2: ±15V / ±33mA output
  • FK1-48D24E3R2: ±24V / ±21mA output
  • FK1-05S3V3ER2: 3.3V / 758mA output (3wW)
  • FK1-05S05ER2: 5V / 600mA output
  • FK1-05S09ER2: 9V / 333mA output
  • FK1-05S12ER2: 12V / 250mA output
  • FK1-05S15ER2: 15V / 200mA output
  • FK1-05S24ER2: 24V / 125mA output
  • FK1-05D3V3ER2: ±3.3V / +-379mA output
  • FK1-05D05ER2: ±5V / ±300mA output
  • FK1-05D12ER2: ±12V / ±125mA output
  • FK1-05D15ER2: ±15V / ±100mA output
  • FK1-05D1524ER2: +-24V / ±62.5mA output
  • FK1-12S3V3ER2: 3.3V / 758mA output
  • FK1-12S05ER2: 5V / 600mA output
  • FK1-12S12ER2: 12V / 250mA output
  • FK1-12S15ER2: 15V / 200mA output
  • FK1-12S24ER2: 24V / 125mA output
  • FK1-12D3V3ER2: ±3.3V / +-379mA output
  • FK1-12D05ER2: ±5V / ±300mA output
  • FK1-12D12ER2: ±12V / ±125mA output
  • FK1-12D15ER2: ±15V / ±100mA output
  • FK1-12D24ER2: +-24V / ±62.5mA output
  • FK1-24S3V3ER2: 3.3V / 758mA output
  • FK1-24S05ER2: 5V / 600mA output
  • FK1-24S12ER2: 12V / 250mA output
  • FK1-24S15ER2: 15V / 200mA output
  • FK1-24S24ER2: 24V / 125mA output
  • FK1-24D3V3ER2: ±3.3V / +-379mA output
  • FK1-24D05ER2: ±5V / +-300mA output
  • FK1-24D12ER2: ±12V / ±125mA output
  • FK1-24D15ER2: ±15V / ±100mA output
  • FK1-24D24ER2: +-24V / ±62.5mA output
  • FK1-48S3V3ER2: 3.3V / 758mA output
  • FK1-48S05ER2: 5V / 600mA output
  • FK1-48S12ER2: 12V / 250mA output
  • FK1-48S15ER2: 15V / 200mA output
  • FK1-48S24ER2: 24V / 125mA output
  • FK1-48D3V3ER2: ±3.3V / +-379mA output
  • FK1-48D05ER2: ±5V / ±300mA output
  • FK1-48D12ER2: ±12V / ±125mA output
  • FK1-48D15ER2: ±15V / ±100mA output
  • FK1-48D24ER2: ±24V / ±62.5mA output

Datasheet, samples and OEM/ODM support available on request.

Variant specification table
Part NumberPowerInput VoltageOutput VoltageOutput CurrentIsolation VoltageSizePackageNo. of Outputs
FK1-05S3V3E3R21W4.5-93.3V303mA3000vdc22.00× 9.50 × 12.00 mmSIP1 & 2
FK1-05S05E3R21W4.5-95V200mA3000vdc22*9.5*12SIP1&2
FK1-05S09E3R21W4.5-99V111mA3000vdc22*9.5*12SIP1&2
FK1-05S12E3R21W4.5-912V84mA3000vdc22*9.5*12SIP1&2
FK1-05S15E3R21W4.5-915V67mA3000vdc22*9.5*12SIP1&2
FK1-05S24E3R21W4.5-924V42mA3000vdc22*9.5*12SIP1&2
FK1-05D3V3E3R21W4.5-9±3.3+-151mA3000vdc22*9.5*12SIP1&2
FK1-05D05E3R21W4.5-9±5±100mA3000vdc22*9.5*12SIP1&2
FK1-05D12E3R21W4.5-9±12±42mA3000vdc22*9.5*12SIP1&2
FK1-05D15E3R21W4.5-9±15±33mA3000vdc22*9.5*12SIP1&2
FK1-05D1524E3R21W4.5-9+-24+-21mA3000vdc22*9.5*12SIP1&2
FK1-12S3V3E3R21W9-183.3V303mA3000vdc22*9.5*12SIP1&2
FK1-12S05E3R21W9-185V200mA3000vdc22*9.5*12SIP1&2
FK1-12S12E3R21W9-1812V84mA3000vdc22*9.5*12SIP1&2
FK1-12S15E3R21W9-1815V67mA3000vdc22*9.5*12SIP1&2
FK1-12S24E3R21W9-1824V42mA3000vdc22*9.5*12SIP1&2
FK1-12D3V3E3R21W9-18±3.3+-151mA3000vdc22*9.5*12SIP1&2
FK1-12D05E3R21W9-18±5±100mA3000vdc22*9.5*12SIP1&2
FK1-12D12E3R21W9-18±12±42mA3000vdc22*9.5*12SIP1&2
FK1-12D15E3R21W9-18±15±33mA3000vdc22*9.5*12SIP1&2
FK1-12D24E3R21W9-18+-24+-21mA3000vdc22*9.5*12SIP1&2
FK1-24S3V3E3R21W18-363.3V303mA3000vdc22*9.5*12SIP1&2
FK1-24S05E3R21W18-365V200mA3000vdc22*9.5*12SIP1&2
FK1-24S12E3R21W18-3612V84mA3000vdc22*9.5*12SIP1&2
FK1-24S15E3R21W18-3615V67mA3000vdc22*9.5*12SIP1&2
FK1-24S24E3R21W18-3624V42mA3000vdc22*9.5*12SIP1&2
FK1-24D3V3E3R21W18-36±3.3+-151mA3000vdc22*9.5*12SIP1&2
FK1-24D05E3R21W18-36±5±100mA3000vdc22*9.5*12SIP1&2
FK1-24D12E3R21W18-36±12±42mA3000vdc22*9.5*12SIP1&2
FK1-24D15E3R21W18-36±15±33mA3000vdc22*9.5*12SIP1&2
FK1-24D24E3R21W18-36+-24+-21mA3000vdc22*9.5*12SIP1&2
FK1-48S3V3E3R21W36-753.3V303mA3000vdc22*9.5*12SIP1&2
FK1-48S05E3R21W36-755V200mA3000vdc22*9.5*12SIP1&2
FK1-48S12E3R21W36-7512V84mA3000vdc22*9.5*12SIP1&2
FK1-48S15E3R21W36-7515V67mA3000vdc22*9.5*12SIP1&2
FK1-48S24E3R21W36-7524V42mA3000vdc22*9.5*12SIP1&2
FK1-48D3V3E3R21W36-75±3.3+-151mA3000vdc22*9.5*12SIP1&2
FK1-48D05E3R21W36-75±5±100mA3000vdc22*9.5*12SIP1&2
FK1-48D12E3R21W36-75±12±42mA3000vdc22*9.5*12SIP1&2
FK1-48D15E3R21W36-75±15±33mA3000vdc22*9.5*12SIP1&2
FK1-48D24E3R21W36-75±24±21mA3000vdc22*9.5*12SIP1&2
FK1-05S3V3ER23W4.5-93.3V758mA15000vdc22.00× 9.50 × 12.00 mmSIP1 & 2
FK1-05S05ER23W4.5-95V600mA15000vdc22.00× 9.50 × 12.00 mmSIP1 & 2
FK1-05S09ER23W4.5-99V333mA15000vdc22.00× 9.50 × 12.00 mmSIP1 & 2
FK1-05S12ER23W4.5-912V250mA15000vdc22.00× 9.50 × 12.00 mmSIP1 & 2
FK1-05S15ER23W4.5-915V200mA15000vdc22.00× 9.50 × 12.00 mmSIP1 & 2
FK1-05S24ER23W4.5-924V125mA15000vdc22.00× 9.50 × 12.00 mmSIP1 & 2
FK1-05D3V3ER23W4.5-9±3.3+-379mA15000vdc22.00× 9.50 × 12.00 mmSIP1 & 2
FK1-05D05ER23W4.5-9±5±300mA15000vdc22.00× 9.50 × 12.00 mmSIP1 & 2
FK1-05D12ER23W4.5-9±12±125mA15000vdc22.00× 9.50 × 12.00 mmSIP1 & 2
FK1-05D15ER23W4.5-9±15±100mA15000vdc22.00× 9.50 × 12.00 mmSIP1 & 2
FK1-05D1524ER23W4.5-9+-24±62.5mA15000vdc22.00× 9.50 × 12.00 mmSIP1 & 2
FK1-12S3V3ER23W9-183.3V758mA15000vdc22.00× 9.50 × 12.00 mmSIP1 & 2
FK1-12S05ER23W9-185V600mA15000vdc22.00× 9.50 × 12.00 mmSIP1 & 2
FK1-12S12ER23W9-1812V250mA15000vdc22.00× 9.50 × 12.00 mmSIP1 & 2
FK1-12S15ER23W9-1815V200mA15000vdc22.00× 9.50 × 12.00 mmSIP1 & 2
FK1-12S24ER23W9-1824V125mA15000vdc22.00× 9.50 × 12.00 mmSIP1 & 2
FK1-12D3V3ER23W9-18±3.3+-379mA15000vdc22.00× 9.50 × 12.00 mmSIP1 & 2
FK1-12D05ER23W9-18±5±300mA15000vdc22.00× 9.50 × 12.00 mmSIP1 & 2
FK1-12D12ER23W9-18±12±125mA15000vdc22.00× 9.50 × 12.00 mmSIP1 & 2
FK1-12D15ER23W9-18±15±100mA15000vdc22.00× 9.50 × 12.00 mmSIP1 & 2
FK1-12D24ER23W9-18+-24±62.5mA15000vdc22.00× 9.50 × 12.00 mmSIP1 & 2
FK1-24S3V3ER23W18-363.3V758mA15000vdc22.00× 9.50 × 12.00 mmSIP1 & 2
FK1-24S05ER23W18-365V600mA15000vdc22.00× 9.50 × 12.00 mmSIP1 & 2
FK1-24S12ER23W18-3612V250mA15000vdc22.00× 9.50 × 12.00 mmSIP1 & 2
FK1-24S15ER23W18-3615V200mA15000vdc22.00× 9.50 × 12.00 mmSIP1 & 2
FK1-24S24ER23W18-3624V125mA15000vdc22.00× 9.50 × 12.00 mmSIP1 & 2
FK1-24D3V3ER23W18-36±3.3+-379mA15000vdc22.00× 9.50 × 12.00 mmSIP1 & 2
FK1-24D05ER23W18-36±5+-300mA15000vdc22.00× 9.50 × 12.00 mmSIP1 & 2
FK1-24D12ER23W18-36±12±125mA15000vdc22.00× 9.50 × 12.00 mmSIP1 & 2
FK1-24D15ER23W18-36±15±100mA15000vdc22.00× 9.50 × 12.00 mmSIP1 & 2
FK1-24D24ER23W18-36+-24±62.5mA15000vdc22.00× 9.50 × 12.00 mmSIP1 & 2
FK1-48S3V3ER23W36-753.3V758mA15000vdc22.00× 9.50 × 12.00 mmSIP1 & 2
FK1-48S05ER23W36-755V600mA15000vdc22.00× 9.50 × 12.00 mmSIP1 & 2
FK1-48S12ER23W36-7512V250mA15000vdc22.00× 9.50 × 12.00 mmSIP1 & 2
FK1-48S15ER23W36-7515V200mA15000vdc22.00× 9.50 × 12.00 mmSIP1 & 2
FK1-48S24ER23W36-7524V125mA15000vdc22.00× 9.50 × 12.00 mmSIP1 & 2
FK1-48D3V3ER23W36-75±3.3+-379mA15000vdc22.00× 9.50 × 12.00 mmSIP1 & 2
FK1-48D05ER23W36-75±5±300mA15000vdc22.00× 9.50 × 12.00 mmSIP1 & 2
FK1-48D12ER23W36-75±12±125mA15000vdc22.00× 9.50 × 12.00 mmSIP1 & 2
FK1-48D15ER23W36-75±15±100mA15000vdc22.00× 9.50 × 12.00 mmSIP1 & 2
FK1-48D24ER23W36-75±24±62.5mA15000vdc22.00× 9.50 × 12.00 mmSIP1 & 2
Total 82 models in this series
fk1-xxxxe3r2-datasheet-2.pdfPDF · 664.3 KB
Open in new tabDownload

Loading preview…

The preview is loaded when this tab is opened. Use the buttons above to open the file in a new tab or save it.

Input Voltage (VAC&VDC)

18-36, 36-75, 4.5-9, 9-18

Power (W)

3w

Isolation Voltage (VAC)

15000vdc

Output Voltage (VDC)

±12, ±15, ±24, ±3.3, ±5, 12, 15, 24, 3.3, 5, 9

Output Current (mA)

±100, ±125, ±300, ±379, ±62.5, 125, 200, 250, 333, 600, 758

Size (mm)

22.00×9.50×12.00 mm

Package

SIP

No of Outputs

1 & 2
