FW1-XXDXXD

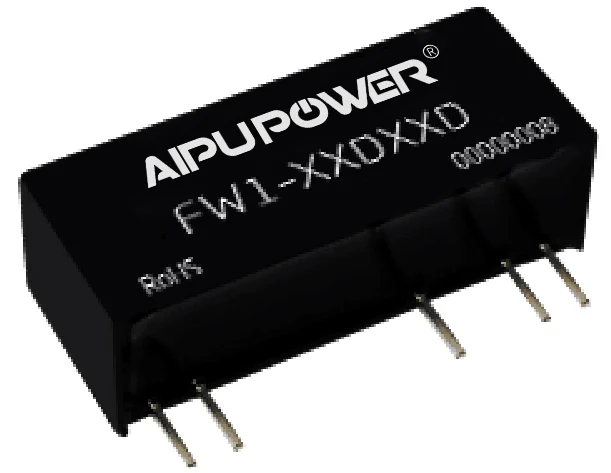

FW1-XXDXXD series DC-DC SIP power module, 10 model(s).
The FW1-XXDXXD series is a family of DC-DC SIP power modules rated 1w with wide input 4.75-5.25.
- FW1-05D05D: ±5V / ±100mA output (1wW)
- FW1-05D09D: ±9V / ±56mA output
- FW1-05D12D: ±12V / ±42mA output
- FW1-05D15D: ±15V / ±33mA output
- FW1-12D05D: ±5V / ±100mA output
- FW1-12D09D: ±9V / ±56mA output
- FW1-12D12D: ±15V / ±33mA output
- FW1-24D05D: ±5V / ±100mA output
- FW1-24D12D: ±12V / ±42mA output
- FW1-24D15D: ±15V / ±33mA output
Datasheet, samples and OEM/ODM support available on request.
| Part Number | Power | Input Voltage | Output Voltage | Output Current | Isolation Voltage | Size | Package | No. of Outputs |
|---|---|---|---|---|---|---|---|---|
| FW1-05D05D | 1W | 4.75-5.25 | ±5 | ±100mA | 1500 | 27.5*9.5*12 | SIP | 2 |
| FW1-05D09D | 1W | 4.75-5.25 | ±9 | ±56mA | 1500 | 27.5*9.5*12 | SIP | 2 |
| FW1-05D12D | 1W | 4.75-5.25 | ±12 | ±42mA | 1500 | 27.5*9.5*12 | SIP | 2 |
| FW1-05D15D | 1W | 4.75-5.25 | ±15 | ±33mA | 1500 | 27.5*9.5*12 | SIP | 2 |
| FW1-12D05D | 1W | 11.4-12.6 | ±5 | ±100mA | 1500 | 27.5*9.5*12 | SIP | 2 |
| FW1-12D09D | 1W | 11.4-12.6 | ±9 | ±56mA | 1500 | 27.5*9.5*12 | SIP | 2 |
| FW1-12D12D | 1W | 11.4-12.6 | ±15 | ±33mA | 1500 | 27.5*9.5*12 | SIP | 2 |
| FW1-24D05D | 1W | 22.8-25.2 | ±5 | ±100mA | 1500 | 27.5*9.5*12 | SIP | 2 |
| FW1-24D12D | 1W | 22.8-25.2 | ±12 | ±42mA | 1500 | 27.5*9.5*12 | SIP | 2 |
| FW1-24D15D | 1W | 22.8-25.2 | ±15 | ±33mA | 1500 | 27.5*9.5*12 | SIP | 2 |
| Total | 10 models in this series | |||||||
