K78XX-2000(L)
K78XX-2000(L) series power module power module, 3 model(s).
The K78XX-2000(L) series is a family of power module power modules rated 12W / 24W with wide input 4.75-18.
- K783V3-2000(L): 3.3V / 2000mA output (12W)
- K7805-2000(L): 5V / 2000mA output (12W)
- K7812-2000(L): 12V / 2000mA output (24W)
Datasheet, samples and OEM/ODM support available on request.
| Part Number | Power | Input Voltage | Output Voltage | Output Current | Isolation Voltage | Size | Package | No. of Outputs |
|---|---|---|---|---|---|---|---|---|
| K783V3-2000(L) | 12W | 4.75-18 | 3.3V | 2000mA | N/A | 11.60x8.50x17.65 mm | SIP | 1 |
| K7805-2000(L) | 12W | 7-18 | 5V | 2000mA | N/A | 11.60x8.50x17.65 mm | SIP | 1 |
| K7812-2000(L) | 24W | 16-32 | 12V | 2000mA | N/A | 11.60x8.50x17.65 mm | SIP | 1 |
| Total | 3 models in this series | |||||||
Loading preview…
The preview is loaded when this tab is opened. Use the buttons above to open the file in a new tab or save it.
|
Related products
Add to Quote
This product has multiple variants. The options may be chosen on the product page
BK150-800SXXGB1N6
Add to Quote
This product has multiple variants. The options may be chosen on the product page
BK150-800SXXGA1N6
Add to Quote
This product has multiple variants. The options may be chosen on the product page
BK15-500SXXH1N4
Add to Quote
This product has multiple variants. The options may be chosen on the product page
BK40-850SXXG2N6
Add to Quote
This product has multiple variants. The options may be chosen on the product page

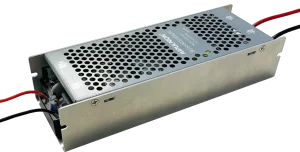

BK150-800SXXGA1D6
