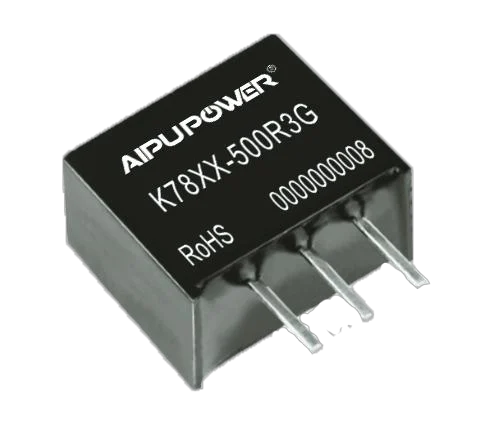

K78XX-500R3G
K78XX-500R3G series power module power module, 6 model(s).
The K78XX-500R3G series is a family of power module power modules rated 24W / 4.5w / 6w / 7.5w with wide input 4.75-34.
- K783V3-500R3G: 3.3V / 500mA output (24W)
- K7805-500R3G: 5V / 500mA output (24W)
- K7806-500R3G: 6.5V / 500mA output (24W)
- K7809-500R3G: 9V / 500mA output (4.5wW)
- K7812-500R3G: 12V / 500mA output (6wW)
- K7815-500R3G: 15V / 500mA output (7.5wW)
Datasheet, samples and OEM/ODM support available on request.
| Part Number | Power | Input Voltage | Output Voltage | Output Current | Isolation Voltage | Size | Package | No. of Outputs |
|---|---|---|---|---|---|---|---|---|
| K783V3-500R3G | 24W | 4.75-34 | 3.3V | 500mA | N/A | 11.6*7.5*10.2 | SIP | 1 |
| K7805-500R3G | 24W | 6.5-34 | 5V | 500mA | N/A | 11.6*7.5*10.2 | SIP | 1 |
| K7806-500R3G | 24W | 9-36 | 6.5V | 500mA | N/A | 11.6*7.5*10.2 | SIP | 1 |
| K7809-500R3G | 4.5W | 12-36 | 9V | 500mA | N/A | 11.6*7.5*10.2 | SIP | 1 |
| K7812-500R3G | 6W | 15-36 | 12V | 500mA | N/A | 11.6*7.5*10.2 | SIP | 1 |
| K7815-500R3G | 7.5W | 19-36 | 15V | 500mA | N/A | 11.6*7.5*10.2 | SIP | 1 |
| Total | 6 models in this series | |||||||
