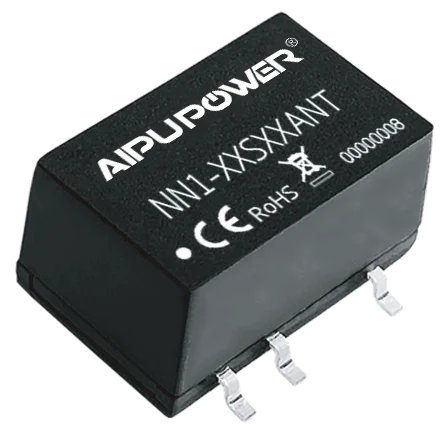

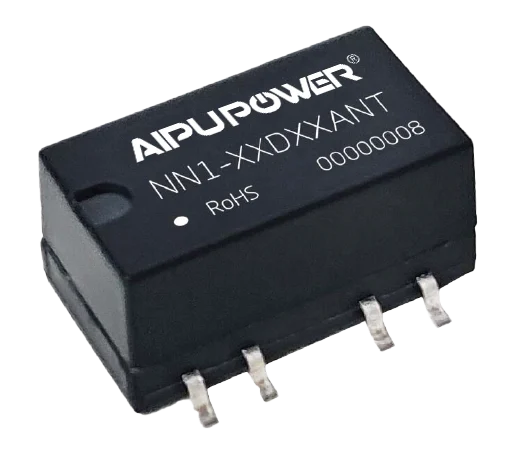

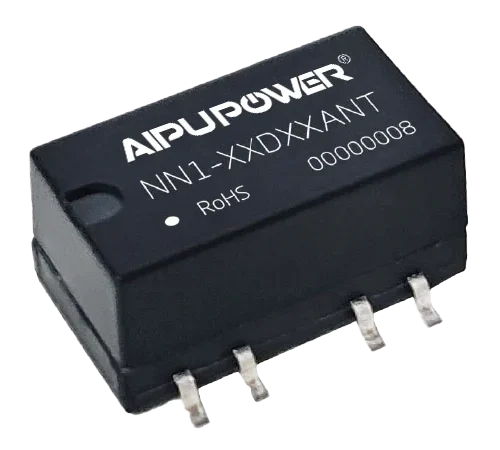

NN1-XXSXXANT series DC-DC SMD power module, 29 model(s).

Quick Inquiry
SKU: NN1-XXSXXANT Category:

The NN1-XXSXXANT series is a family of DC-DC SMD power modules rated 1w with wide input 2.97-3.63.

  • NN1-3V3S3V3ANT: 3.3V / 303mA output (1wW)
  • NN1-3V3S05ANT: 5V / 200mA output
  • NN1-3V3S09ANT: 9V / 111mA output
  • NN1-3V3S12ANT: 12V / 83mA output
  • NN1-3V3S15ANT: 15V / 67mA output
  • NN1-3V3S24ANT: 24V / 42mA output
  • NN1-05S3V3ANT: 3.3V / 303mA output
  • NN1-05S05ANT: 5V / 200mA output
  • NN1-05S06ANT: 6V / 167mA output
  • NN1-05S09ANT: 9V / 111mA output
  • NN1-05S12ANT: 12V / 83mA output
  • NN1-05S15ANT: 15V / 67mA output
  • NN1-05S24ANT: 24V / 42mA output
  • NN1-12S3V3ANT: 3.3V / 303mA output
  • NN1-12S05ANT: 5V / 200mA output
  • NN1-12S09ANT: 9V / 111mA output
  • NN1-12S12ANT: 12V / 83mA output
  • NN1-12S15ANT: 15V / 67mA output
  • NN1-12S24ANT: 24V / 42mA output
  • NN1-15S05ANT: 5V / 200mA output
  • NN1-15S12ANT: 12V / 83mA output
  • NN1-15S15ANT: 15V / 67mA output
  • NN1-15S24ANT: 24V / 42mA output
  • NN1-24S3V3ANT: 3.3V / 303mA output
  • NN1-24S05ANT: 5V / 200mA output
  • NN1-24S09ANT: 9V / 111mA output
  • NN1-24S12ANT: 12V / 83mA output
  • NN1-24S15ANT: 15V / 67mA output
  • NN1-24S24ANT: 24V / 42mA output

Datasheet, samples and OEM/ODM support available on request.

Variant specification table
Part NumberPowerInput VoltageOutput VoltageOutput CurrentIsolation VoltageSizePackageNo. of Outputs
NN1-3V3S3V3ANT1W2.97-3.633.3V303mA150012.7*11*7.13SMD1
NN1-3V3S05ANT1W2.97-3.635V200mA150012.7*11*7.13SMD1
NN1-3V3S09ANT1W2.97-3.639V111mA150012.7*11*7.13SMD1
NN1-3V3S12ANT1W2.97-3.6312V83mA150012.7*11*7.13SMD1
NN1-3V3S15ANT1W2.97-3.6315V67mA150012.7*11*7.13SMD1
NN1-3V3S24ANT1W2.97-3.6324V42mA150012.7*11*7.13SMD1
NN1-05S3V3ANT1W4.5-5.53.3V303mA150012.7*11*7.13SMD1
NN1-05S05ANT1W4.5-5.55V200mA150012.7*11*7.13SMD1
NN1-05S06ANT1W4.5-5.56V167mA150012.7*11*7.13SMD1
NN1-05S09ANT1W4.5-5.59V111mA150012.7*11*7.13SMD1
NN1-05S12ANT1W4.5-5.512V83mA150012.7*11*7.13SMD1
NN1-05S15ANT1W4.5-5.515V67mA150012.7*11*7.13SMD1
NN1-05S24ANT1W4.5-5.524V42mA150012.7*11*7.13SMD1
NN1-12S3V3ANT1W10.8-13.23.3V303mA150012.7*11*7.13SMD1
NN1-12S05ANT1W10.8-13.25V200mA150012.7*11*7.13SMD1
NN1-12S09ANT1W10.8-13.29V111mA150012.7*11*7.13SMD1
NN1-12S12ANT1W10.8-13.212V83mA150012.7*11*7.13SMD1
NN1-12S15ANT1W10.8-13.215V67mA150012.7*11*7.13SMD1
NN1-12S24ANT1W10.8-13.224V42mA150012.7*11*7.13SMD1
NN1-15S05ANT1W13.5-16.55V200mA150012.7*11*7.13SMD1
NN1-15S12ANT1W13.5-16.512V83mA150012.7*11*7.13SMD1
NN1-15S15ANT1W13.5-16.515V67mA150012.7*11*7.13SMD1
NN1-15S24ANT1W13.5-16.524V42mA150012.7*11*7.13SMD1
NN1-24S3V3ANT1W21.6-26.43.3V303mA150012.7*11*7.13SMD1
NN1-24S05ANT1W21.6-26.45V200mA150012.7*11*7.13SMD1
NN1-24S09ANT1W21.6-26.49V111mA150012.7*11*7.13SMD1
NN1-24S12ANT1W21.6-26.412V83mA150012.7*11*7.13SMD1
NN1-24S15ANT1W21.6-26.415V67mA150012.7*11*7.13SMD1
NN1-24S24ANT1W21.6-26.424V42mA150012.7*11*7.13SMD1
Total 29 models in this series
nn1-xxsxxant-datasheet-1.pdfPDF · 1,005.8 KB
Open in new tabDownload

Loading preview…

The preview is loaded when this tab is opened. Use the buttons above to open the file in a new tab or save it.

Input Voltage (VAC&VDC)

10.8-13.2, 13.5-16.5, 2.97-3.63, 21.6-26.4, 4.5-5.5

Power (W)

1w

Isolation Voltage (VAC)

1500

Output Voltage (VDC)

12, 15, 24, 3.3, 5, 6, 9

Output Current (mA)

111, 167, 200, 303, 42, 67, 83

Size (mm)

12.7x11x7.13 mm

Package

SMD

No of Outputs

1
