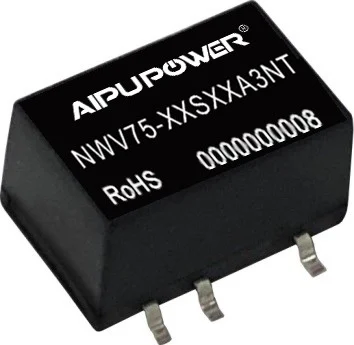

NWV75-XXSXXA3NT
NWV75-XXSXXA3NT series DC-DC SMD power module, 10 model(s).
The NWV75-XXSXXA3NT series is a family of DC-DC SMD power modules rated 0.66W / 0.75W with wide input 3.135-3.465.
- NWV75-3V3S3V3A3NT: 3.3V / 200mA output (0.66W)
- NWV75-05S3V3A3NT: 3.3V / 200mA output (0.66W)
- NWV75-05S05A3NT: 5V / 150mA output (0.75W)
- NWV75-05S12A3NT: 12V / 62mA output
- NWV75-12S3V3A3NT: 3.3V / 200mA output (0.66W)
- NWV75-12S05A3NT: 5V / 150mA output (0.75W)
- NWV75-12S12A3NT: 12V / 62mA output
- NWV75-24S3V3A3NT: 3.3V / 200mA output (0.66W)
- NWV75-24S05A3NT: 5V / 150mA output (0.75W)
- NWV75-24S12A3NT: 12V / 62mA output
Datasheet, samples and OEM/ODM support available on request.
| Part Number | Power | Input Voltage | Output Voltage | Output Current | Isolation Voltage | Size | Package | No. of Outputs |
|---|---|---|---|---|---|---|---|---|
| NWV75-3V3S3V3A3NT | 0.66W | 3.135-3.465 | 3.3V | 200mA | 3000 | 12.7X11.00X7.13 mm | SMD | 1 |
| NWV75-05S3V3A3NT | 0.66W | 4.5-5.5 | 3.3V | 200mA | 3000 | 12.7X11.00X7.13 mm | SMD | 1 |
| NWV75-05S05A3NT | 0.75W | 4.5-5.5 | 5V | 150mA | 3000 | 12.7X11.00X7.13 mm | SMD | 1 |
| NWV75-05S12A3NT | 0.75W | 4.5-5.5 | 12V | 62mA | 3000 | 12.7X11.00X7.13 mm | SMD | 1 |
| NWV75-12S3V3A3NT | 0.66W | 11.4-12.6 | 3.3V | 200mA | 3000 | 12.7X11.00X7.13 mm | SMD | 1 |
| NWV75-12S05A3NT | 0.75W | 11.4-12.6 | 5V | 150mA | 3000 | 12.7X11.00X7.13 mm | SMD | 1 |
| NWV75-12S12A3NT | 0.75W | 11.4-12.6 | 12V | 62mA | 3000 | 12.7X11.00X7.13 mm | SMD | 1 |
| NWV75-24S3V3A3NT | 0.66W | 22.8-25.2 | 3.3V | 200mA | 3000 | 12.7X11.00X7.13 mm | SMD | 1 |
| NWV75-24S05A3NT | 0.75W | 22.8-25.2 | 5V | 150mA | 3000 | 12.7X11.00X7.13 mm | SMD | 1 |
| NWV75-24S12A3NT | 0.75W | 22.8-25.2 | 12V | 62mA | 3000 | 12.7X11.00X7.13 mm | SMD | 1 |
| Total | 10 models in this series | |||||||
Loading preview…
The preview is loaded when this tab is opened. Use the buttons above to open the file in a new tab or save it.
|
Related products
Add to Quote
This product has multiple variants. The options may be chosen on the product page
NNV25-XXSXXA3NT
Add to Quote
This product has multiple variants. The options may be chosen on the product page

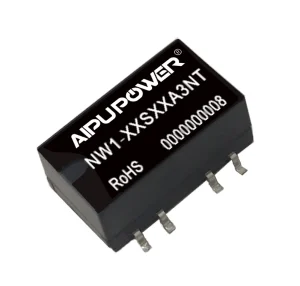

NW1-XXSXXA3NT
Add to Quote
This product has multiple variants. The options may be chosen on the product page
NW1-XXSXXANT
Add to Quote
This product has multiple variants. The options may be chosen on the product page

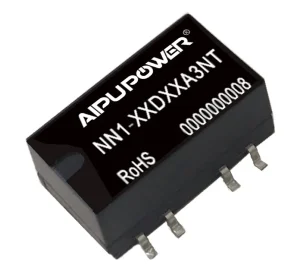

NN1-XXDXXA3NT
