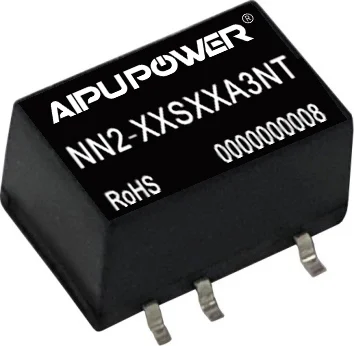

NN2-XXSXXA3NT series DC-DC SMD power module, 17 model(s).

Quick Inquiry
SKU: NN2-XXSXXA3NT Category:

The NN2-XXSXXA3NT series is a family of DC-DC SMD power modules rated 2w with wide input 2.97-3.63.

  • NN2-3V3S3V3A3NT: 5V / 400mA output (2wW)
  • NN2-05S3V3A3NT: 3.3V / 600mA output
  • NN2-05S05A3NT: 5V / 400mA output
  • NN2-05S07A3NT: 7V / 285mA output
  • NN2-05S09A3NT: 9V / 222mA output
  • NN2-05S12A3NT: 12V / 167mA output
  • NN2-05S15A3NT: 15V / 133mA output
  • NN2-12S05A3NT: 5V / 400mA output
  • NN2-12S12A3NT: 12V / 167mA output
  • NN2-12S15A3NT: 15V / 133mA output
  • NN2-15S05A3NT: 5V / 400mA output
  • NN2-15S12A3NT: 12V / 167mA output
  • NN2-15S15A3NT: 15V / 133mA output
  • NN2-24S05A3NT: 5V / 400mA output
  • NN2-24S5V5A3NT: 5.5V / 363mA output
  • NN2-24S12A3NT: 12V / 167mA output
  • NN2-24S15A3NT: 15V / 133mA output

Datasheet, samples and OEM/ODM support available on request.

Variant specification table
Part NumberPowerInput VoltageOutput VoltageOutput CurrentIsolation VoltageSizePackageNo. of Outputs
NN2-3V3S3V3A3NT2W2.97-3.635V400mA300012.7*11*7.13mmSMD1
NN2-05S3V3A3NT2W4.5-5.53.3V600mA300012.7*11*7.13mmSMD1
NN2-05S05A3NT2W4.5-5.55V400mA300012.7*11*7.13mmSMD1
NN2-05S07A3NT2W4.5-5.57V285mA300012.7*11*7.13mmSMD1
NN2-05S09A3NT2W4.5-5.59V222mA300012.7*11*7.13mmSMD1
NN2-05S12A3NT2W4.5-5.512V167mA300012.7*11*7.13mmSMD1
NN2-05S15A3NT2W4.5-5.515V133mA300012.7*11*7.13mmSMD1
NN2-12S05A3NT2W10.8-13.25V400mA300012.7*11*7.13mmSMD1
NN2-12S12A3NT2W10.8-13.212V167mA300012.7*11*7.13mmSMD1
NN2-12S15A3NT2W10.8-13.215V133mA300012.7*11*7.13mmSMD1
NN2-15S05A3NT2W13.5-16.55V400mA300012.7*11*7.13mmSMD1
NN2-15S12A3NT2W13.5-16.512V167mA300012.7*11*7.13mmSMD1
NN2-15S15A3NT2W13.5-16.515V133mA300012.7*11*7.13mmSMD1
NN2-24S05A3NT2W21.6-26.45V400mA300012.7*11*7.13mmSMD1
NN2-24S5V5A3NT2W21.6-26.45.5V363mA300012.7*11*7.13mmSMD1
NN2-24S12A3NT2W21.6-26.412V167mA300012.7*11*7.13mmSMD1
NN2-24S15A3NT2W21.6-26.415V133mA300012.7*11*7.13mmSMD1
Total 17 models in this series
nn2-xxsxxa3nt-datasheet-1.pdfPDF · 1.8 MB
Open in new tabDownload

Loading preview…

The preview is loaded when this tab is opened. Use the buttons above to open the file in a new tab or save it.

Input Voltage (VAC&VDC)

10.8-13.2, 13.5-16.5, 2.97-3.63, 21.6-26.4, 4.5-5.5

Power (W)

2w

Isolation Voltage (VAC)

3000

Output Voltage (VDC)

12, 15, 3.3, 5, 5.5, 7, 9

Output Current (mA)

133, 167, 222, 285, 363, 400, 600

Size (mm)

12.7x11x7.13 mm

Package

SMD

No of Outputs

1
