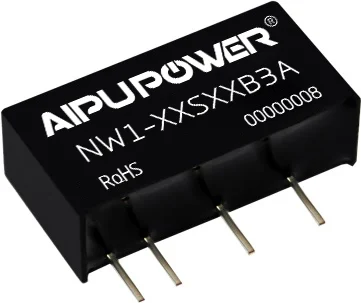

NW1-XXSXXB3A series DC-DC SIP power module, 16 model(s).

Quick Inquiry
SKU: NW1-XXSXXB3A Category:

The NW1-XXSXXB3A series is a family of DC-DC SIP power modules rated 1w with wide input 3.135-3.465.

  • NW1-3V3S15B3A: 1'5V / 67mA output (1wW)
  • NW1-05S3V3B3A: 3.3V / 250mA output
  • NW1-05S05B3A: 5V / 200mA output
  • NW1-05S12B3A: 12V / 83mA output
  • NW1-05S15B3A: 15V / 67mA output
  • NW1-05S24B3A: 24V / 42mA output
  • NW1-12S05B3A: 5V / 200mA output
  • NW1-12S09B3A: 9V / 111mA output
  • NW1-12S12B3A: 12V / 84mA output
  • NW1-12S15B3A: 15V / 67mA output
  • NW1-12S24B3A: 24V / 42mA output
  • NW1-24S3V3B3A: 3.3V / 250mA output
  • NW1-24S05B3A: 5V / 200mA output
  • NW1-24S12B3A: 12V / 84mA output
  • NW1-24S15B3A: 15V / 67mA output
  • NW1-24S24B3A: 24V / 42mA output

Datasheet, samples and OEM/ODM support available on request.

Variant specification table
Part NumberPowerInput VoltageOutput VoltageOutput CurrentIsolation VoltageSizePackageNo. of Outputs
NW1-3V3S15B3A1W3.135-3.4651'5V67mA300019.5*6*10SIP1
NW1-05S3V3B3A1W4.25-5.753.3V250mA300019.5*6*10SIP1
NW1-05S05B3A1W4.25-5.755V200mA300019.5*6*10SIP1
NW1-05S12B3A1W4.25-5.7512V83mA300019.5*6*10SIP1
NW1-05S15B3A1W4.25-5.7515V67mA300019.5*6*10SIP1
NW1-05S24B3A1W4.25-5.7524V42mA300019.5*6*10SIP1
NW1-12S05B3A1W11.4-12.65V200mA300019.5*6*10SIP1
NW1-12S09B3A1W11.4-12.69V111mA300019.5*6*10SIP1
NW1-12S12B3A1W11.4-12.612V84mA300019.5*6*10SIP1
NW1-12S15B3A1W11.4-12.615V67mA300019.5*6*10SIP1
NW1-12S24B3A1W11.4-12.624V42mA300019.5*6*10SIP1
NW1-24S3V3B3A1W22.8-25.23.3V250mA300019.5*6*10SIP1
NW1-24S05B3A1W22.8-25.25V200mA300019.5*6*10SIP1
NW1-24S12B3A1W22.8-25.212V84mA300019.5*6*10SIP1
NW1-24S15B3A1W22.8-25.215V67mA300019.5*6*10SIP1
NW1-24S24B3A1W22.8-25.224V42mA300019.5*6*10SIP1
Total 16 models in this series
nw1-xxsxxb3a-datasheet-1.pdfPDF · 1.7 MB
Open in new tabDownload

Loading preview…

The preview is loaded when this tab is opened. Use the buttons above to open the file in a new tab or save it.

Input Voltage (VAC&VDC)

11.4-12.6, 22.8-25.2, 3.135-3.465, 4.25-5.75

Power (W)

1w

Isolation Voltage (VAC)

3000

Output Voltage (VDC)

1'5, 12, 15, 24, 3.3, 5, 9

Output Current (mA)

111, 200, 250, 42, 67, 83, 84

Size (mm)

19.5x6x10 mm

Package

SIP

No of Outputs

1
