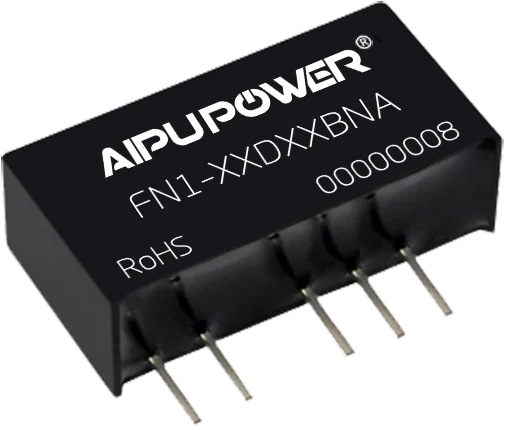

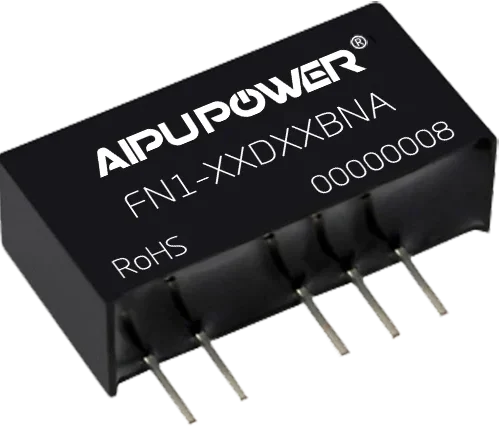

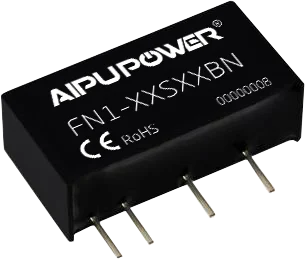

FN1-XXXXBN series DC-DC SIP power module, 49 model(s).

Quick Inquiry
SKU: FN1-XXXXBN Category:

The FN1-XXXXBN series is a family of DC-DC SIP power modules rated 1w with wide input 2.97-3.63.

  • FN1-3V3S3V3BN: 3.3V / 303mA output (1wW)
  • FN1-3V3S05BN: 5V / 200mA output
  • FN1-3V3S12BN: 12V / 84mA output
  • FN1-3V3S15BN: 15V / 67mA output
  • FN1-3V3S24BN: 24V / 42mA output
  • FN1-05S3V3BN: 3.3V / 303mA output
  • FN1-05S05BN: 5V / 200mA output
  • FN1-05S09BN: 9V / 111mA output
  • FN1-05S12BN: 12V / 84mA output
  • FN1-05S15BN: 15V / 67mA output
  • FN1-05S24BN: 24V / 42mA output
  • FN1-05D3V3BN: ±3.3V / ±152mA output
  • FN1-05D05BN: ±5V / ±100mA output
  • FN1-05D09BN: ±9V / ±56mA output
  • FN1-05D12BN: ±12V / ±42mA output
  • FN1-05D15BN: ±15V / ±33mA output
  • FN1-05D25BN: ±24V / ±21mA output
  • FN1-09S09BN: 9V / 111mA output
  • FN1-09S12BN: 12V / 84mA output
  • FN1-09S15BN: 15V / 67mA output
  • FN1-12S3V3BN: 3.3V / 303mA output
  • FN1-12S05BN: 5V / 200mA output
  • FN1-12S09BN: 9V / 111mA output
  • FN1-12S12BN: 12V / 84mA output
  • FN1-12S15BN: 15V / 67mA output
  • FN1-12S24BN: 24V / 42mA output
  • FN1-12D3V3BN: ±3.3V / ±152mA output
  • FN1-12D05BN: ±5V / ±100mA output
  • FN1-12D09BN: ±9V / ±56mA output
  • FN1-12D12BN: ±12V / ±42mA output
  • FN1-12D15BN: ±15V / ±33mA output
  • FN1-12D24BN: ±24V / ±21mA output
  • FN1-15S05BN: 5V / 200mA output
  • FN1-15S12BN: 12V / 84mA output
  • FN1-15S15BN: 15V / 67mA output
  • FN1-15D05BN: ±5V / ±100mA output
  • FN1-15D09BN: ±9V / ±56mA output
  • FN1-15D12BN: ±12V / ±42mA output
  • FN1-15D15BN: ±15V / ±33mA output
  • FN1-24S3V3BN: 3.3V / 303mA output
  • FN1-24S05BN: 5V / 200mA output
  • FN1-24S09BN: 9V / 111mA output
  • FN1-24S12BN: 12V / 84mA output
  • FN1-24S15BN: 15V / 67mA output
  • FN1-24S24BN: 24V / 42mA output
  • FN1-24D05BN: ±5V / ±100mA output
  • FN1-24D09BN: ±9V / ±56mA output
  • FN1-24D12BN: ±12V / ±42mA output
  • FN1-24D15BN: ±15V / ±33mA output

Datasheet, samples and OEM/ODM support available on request.

Variant specification table
Part NumberPowerInput VoltageOutput VoltageOutput CurrentIsolation VoltageSizePackageNo. of Outputs
FN1-3V3S3V3BN1W2.97-3.633.3V303mA150019.5*6*10SIP1&2
FN1-3V3S05BN1W2.97-3.635V200mA150019.5*6*10SIP1&2
FN1-3V3S12BN1W2.97-3.6312V84mA150019.5*6*10SIP1&2
FN1-3V3S15BN1W2.97-3.6315V67mA150019.5*6*10SIP1&2
FN1-3V3S24BN1W2.97-3.6324V42mA150019.5*6*10SIP1&2
FN1-05S3V3BN1W4.5-5.53.3V303mA150019.5*6*10SIP1&2
FN1-05S05BN1W4.5-5.55V200mA150019.5*6*10SIP1&2
FN1-05S09BN1W4.5-5.59V111mA150019.5*6*10SIP1&2
FN1-05S12BN1W4.5-5.512V84mA150019.5*6*10SIP1&2
FN1-05S15BN1W4.5-5.515V67mA150019.5*6*10SIP1&2
FN1-05S24BN1W4.5-5.524V42mA150019.5*6*10SIP1&2
FN1-05D3V3BN1W4.5-5.5±3.3±152mA150019.5*6*10SIP1&2
FN1-05D05BN1W4.5-5.5±5±100mA150019.5*6*10SIP1&2
FN1-05D09BN1W4.5-5.5±9±56mA150019.5*6*10SIP1&2
FN1-05D12BN1W4.5-5.5±12±42mA150019.5*6*10SIP1&2
FN1-05D15BN1W4.5-5.5±15±33mA150019.5*6*10SIP1&2
FN1-05D25BN1W4.5-5.5±24±21mA150019.5*6*10SIP1&2
FN1-09S09BN1W8.1-9.99V111mA150019.5*6*10SIP1&2
FN1-09S12BN1W8.1-9.912V84mA150019.5*6*10SIP1&2
FN1-09S15BN1W8.1-9.915V67mA150019.5*6*10SIP1&2
FN1-12S3V3BN1W10.8-13.23.3V303mA150019.5*6*10SIP1&2
FN1-12S05BN1W10.8-13.25V200mA150019.5*6*10SIP1&2
FN1-12S09BN1W10.8-13.29V111mA150019.5*6*10SIP1&2
FN1-12S12BN1W10.8-13.212V84mA150019.5*6*10SIP1&2
FN1-12S15BN1W10.8-13.215V67mA150019.5*6*10SIP1&2
FN1-12S24BN1W10.8-13.224V42mA150019.5*6*10SIP1&2
FN1-12D3V3BN1W10.8-13.2±3.3±152mA150019.5*6*10SIP1&2
FN1-12D05BN1W10.8-13.2±5±100mA150019.5*6*10SIP1&2
FN1-12D09BN1W10.8-13.2±9±56mA150019.5*6*10SIP1&2
FN1-12D12BN1W10.8-13.2±12±42mA150019.5*6*10SIP1&2
FN1-12D15BN1W10.8-13.2±15±33mA150019.5*6*10SIP1&2
FN1-12D24BN1W10.8-13.2±24±21mA150019.5*6*10SIP1&2
FN1-15S05BN1W13.5-16.55V200mA150019.5*6*10SIP1&2
FN1-15S12BN1W13.5-16.512V84mA150019.5*6*10SIP1&2
FN1-15S15BN1W13.5-16.515V67mA150019.5*6*10SIP1&2
FN1-15D05BN1W13.5-16.5±5±100mA150019.5*6*10SIP1&2
FN1-15D09BN1W13.5-16.5±9±56mA150019.5*6*10SIP1&2
FN1-15D12BN1W13.5-16.5±12±42mA150019.5*6*10SIP1&2
FN1-15D15BN1W13.5-16.5±15±33mA150019.5*6*10SIP1&2
FN1-24S3V3BN1W21.6-26.43.3V303mA150019.5*6*10SIP1&2
FN1-24S05BN1W21.6-26.45V200mA150019.5*6*10SIP1&2
FN1-24S09BN1W21.6-26.49V111mA150019.5*6*10SIP1&2
FN1-24S12BN1W21.6-26.412V84mA150019.5*6*10SIP1&2
FN1-24S15BN1W21.6-26.415V67mA150019.5*6*10SIP1&2
FN1-24S24BN1W21.6-26.424V42mA150019.5*6*10SIP1&2
FN1-24D05BN1W21.6-26.4±5±100mA150019.5*6*10SIP1&2
FN1-24D09BN1W21.6-26.4±9±56mA150019.5*6*10SIP1&2
FN1-24D12BN1W21.6-26.4±12±42mA150019.5*6*10SIP1&2
FN1-24D15BN1W21.6-26.4±15±33mA150019.5*6*10SIP1&2
Total 49 models in this series
fn1-xxxxbn-datasheet-1.pdfPDF · 1.8 MB
Open in new tabDownload

Loading preview…

The preview is loaded when this tab is opened. Use the buttons above to open the file in a new tab or save it.

Input Voltage (VAC&VDC)

10.8-13.2, 13.5-16.5, 2.97-3.63, 21.6-26.4, 4.5-5.5, 8.1-9.9

Power (W)

1w

Isolation Voltage (VAC)

1500

Output Voltage (VDC)

±12, ±15, ±24, ±3.3, ±5, ±9, 12, 15, 24, 3.3, 5, 9

Output Current (mA)

±100, ±152, ±21, ±33, ±42, ±56, 111, 200, 303, 42, 67, 84

Size (mm)

19.5x6x10 mm

Package

SIP

No of Outputs

1 & 2
