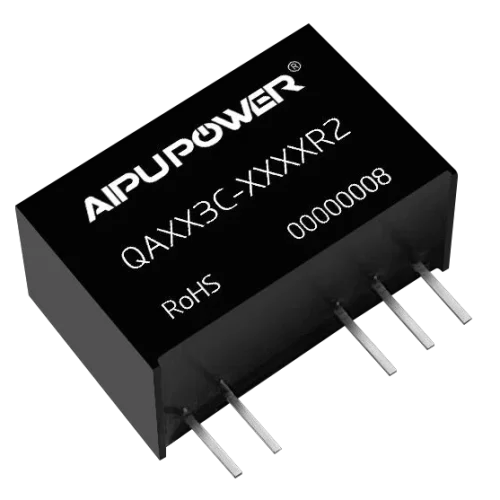

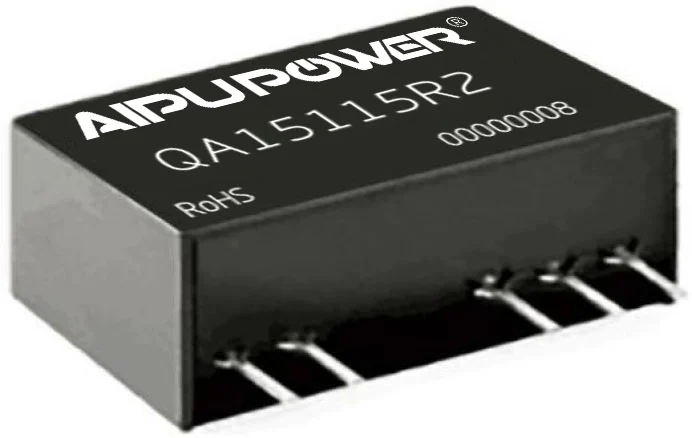

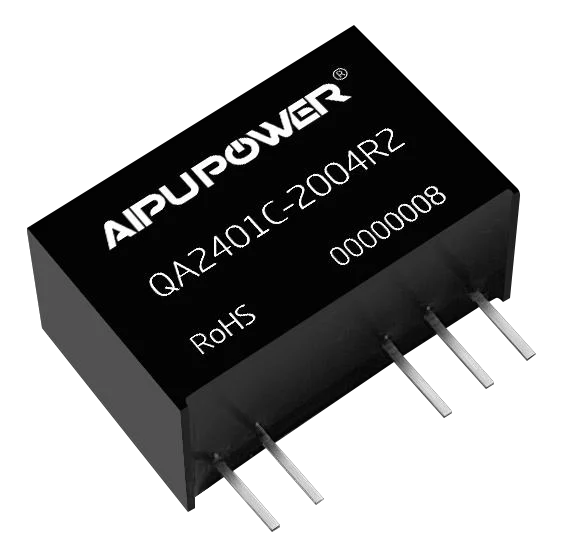

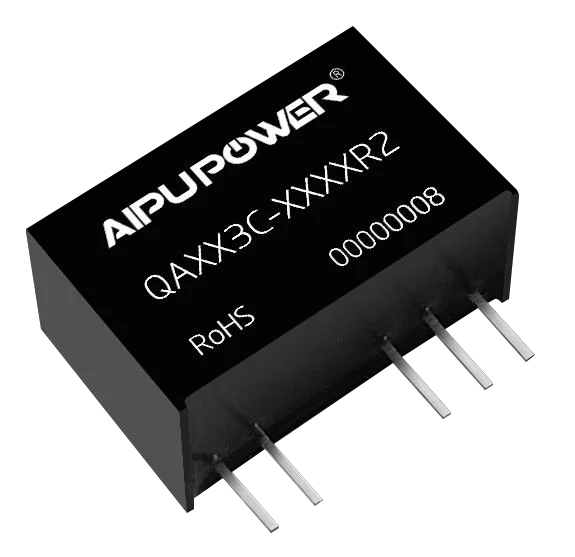

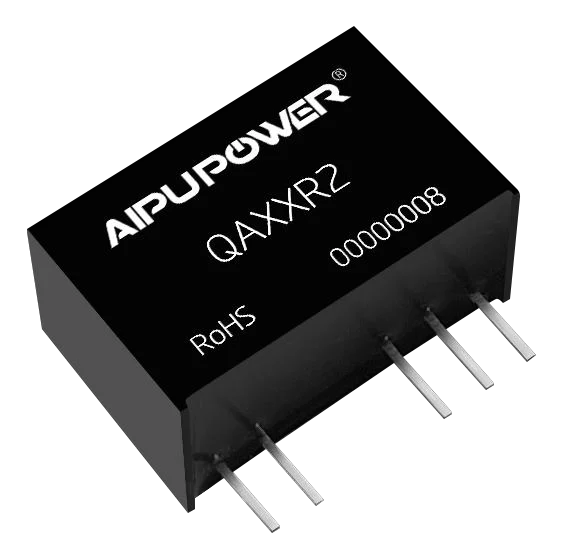

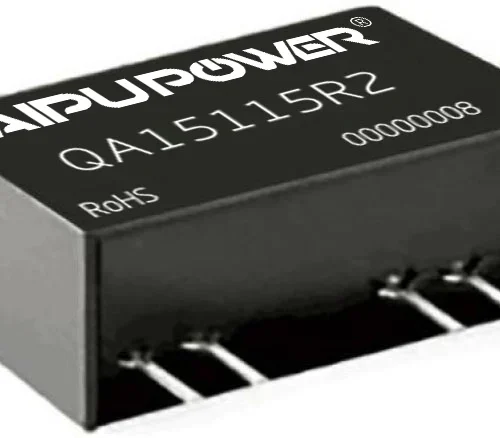

QAXX-XXXXR2
QAXX-XXXXR2 series power module power module, 1 model(s).
The QAXX-XXXXR2 series is a family of power module power modules rated 14.5-15.5W with wide input +15.
- QA01R2: -8.7V / +80/-40mA output (14.5-15.5W)
Datasheet, samples and OEM/ODM support available on request.
| Part Number | Power | Input Voltage | Output Voltage | Output Current | Isolation Voltage | Size | Package | No. of Outputs |
|---|---|---|---|---|---|---|---|---|
| QA01R2 | 14.5-15.5W | 14.5-15.5 | +15/-8.7 | +80/-40mA | 3500vac | 19.50× 9.80 × 12.50mm | SIP | 1 |
| Total | 1 model in this series | |||||||
