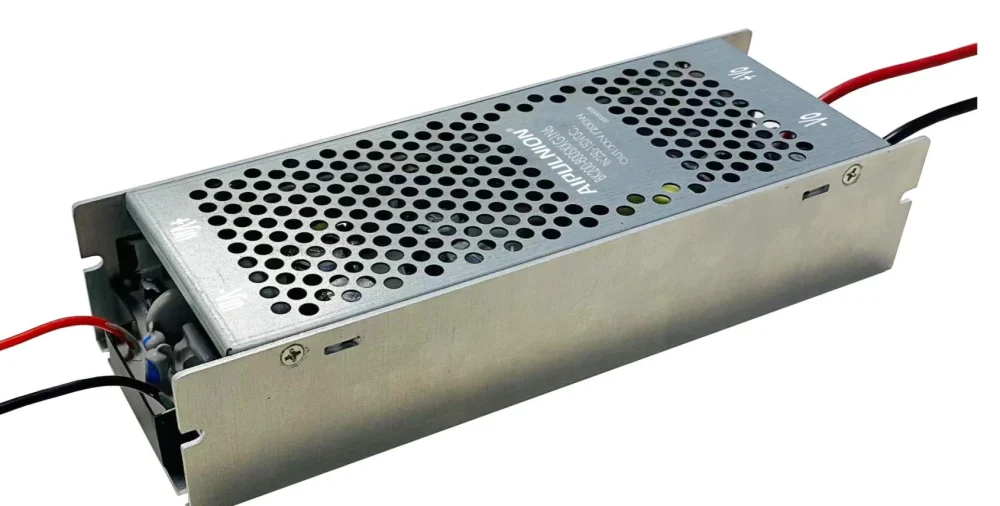

BK200-800SXXG1N6
BK200-800SXXG1N6 series power module power module, 7 model(s).
The BK200-800SXXG1N6 series is a family of power module power modules rated 200W with wide input 250-1500.
- BK200-800S24G1N6: 24V / 6250mA output (200WW)
- BK200-800S24G1N6-1: 24V / 6250mA output
- BK200-800S24G1N6-2: 24V / 6250mA output
- BK200-800S28G1N6: 28V / 7143mA output
- BK200-800S28G1N6-1: 28V / 7143mA output
- BK200-800S28G1N6-2: 28V / 7143mA output
- BK200-800S32G1N6: 32V / 6250mA output
Datasheet, samples and OEM/ODM support available on request.
| Part Number | Power | Input Voltage | Output Voltage | Output Current | Isolation Voltage | Size | Package | No. of Outputs |
|---|---|---|---|---|---|---|---|---|
| BK200-800S24G1N6 | 200W | 250-1500 | 24V | 6250mA | 4000vac | 215.00 x 125.00 x 50.00 mm | wiring | 1 |
| BK200-800S24G1N6-1 | 200W | 250-1500 | 24V | 6250mA | 4000vac | 215.00 x 125.00 x 50.00 mm | wiring | 1 |
| BK200-800S24G1N6-2 | 200W | 250-1500 | 24V | 6250mA | 4000vac | 215.00 x 125.00 x 50.00 mm | wiring | 1 |
| BK200-800S28G1N6 | 200W | 250-1500 | 28V | 7143mA | 4000vac | 215.00 x 125.00 x 50.00 mm | wiring | 1 |
| BK200-800S28G1N6-1 | 200W | 250-1500 | 28V | 7143mA | 4000vac | 215.00 x 125.00 x 50.00 mm | wiring | 1 |
| BK200-800S28G1N6-2 | 200W | 250-1500 | 28V | 7143mA | 4000vac | 215.00 x 125.00 x 50.00 mm | wiring | 1 |
| BK200-800S32G1N6 | 200W | 250-1500 | 32V | 6250mA | 4000vac | 215.00 x 125.00 x 50.00 mm | wiring | 1 |
| Total | 7 models in this series | |||||||
