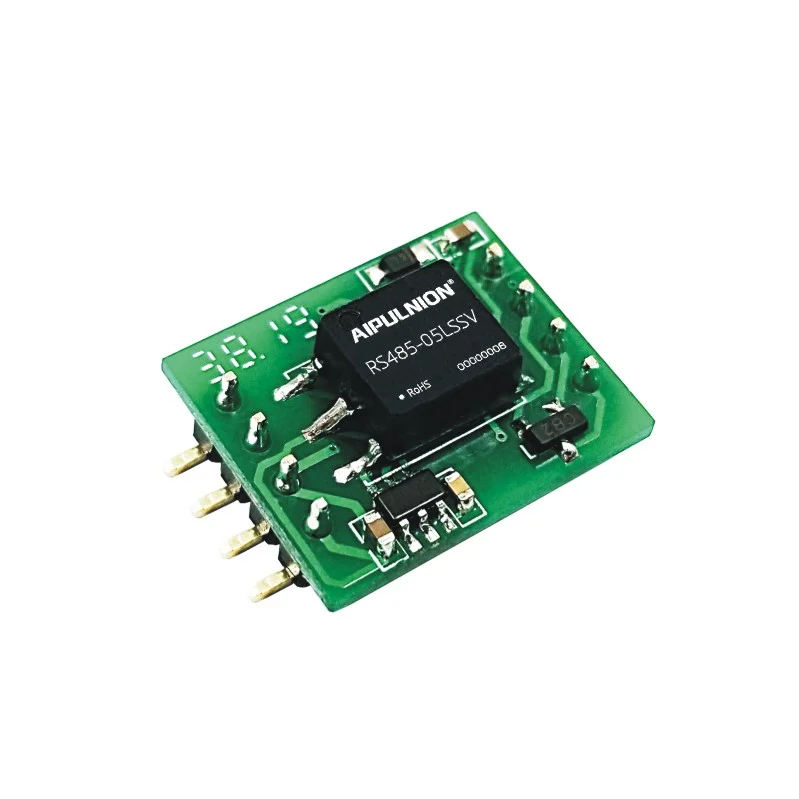

RS485-XXLSSV
RS485-XXLSSV series power module power module, 2 model(s).
The RS485-XXLSSV series is a family of power module power modules rated 3.15-3.45W / 4.75-5.25W with wide input 3.3.
- RS485-3V3LSSV: 100kV / 256mA output (3.15-3.45W)
- RS485-05LSSV: V / mA output (4.75-5.25W)
Datasheet, samples and OEM/ODM support available on request.
| Part Number | Power | Input Voltage | Output Voltage | Output Current | Isolation Voltage | Size | Package | No. of Outputs |
|---|---|---|---|---|---|---|---|---|
| RS485-3V3LSSV | 3.15-3.45W | 3.15-3.45 | 3.3 | 256mA | 4000vdc | 21.8X14.8X7.2 | wiring | 1 |
| RS485-05LSSV | 4.75-5.25W | 4.75-5.25 | 5 | 256mA | 4000vdc | 21.8X14.8X7.2 | wiring | 1 |
| Total | 2 models in this series | |||||||
