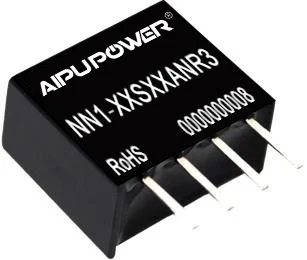

NN1-XXSXXANR3 series DC-DC SIP power module, 27 model(s).

Quick Inquiry
UGS : NN1-XXSXXANR3 Catégorie :

The NN1-XXSXXANR3 series is a family of DC-DC SIP power modules rated 1w with wide input 2.97-3.63.

  • NN1-3V3S3V3ANR3: 3.3V / 303mA output (1wW)
  • NN1-3V3S05ANR3: 5V / 200mA output
  • NN1-3V3S12ANR3: 12V / 84mA output
  • NN1-3V3S15ANR3: 15V / 67mA output
  • NN1-3V3S24ANR3: 24V / 42mA output
  • NN1-05S3V3ANR3: 3.3V / 303mA output
  • NN1-05S05ANR3: 5V / 200mA output
  • NN1-05S09ANR3: 9V / 111mA output
  • NN1-05S12ANR3: 12V / 84mA output
  • NN1-05S15ANR3: 15V / 67mA output
  • NN1-05S24ANR3: 24V / 42mA output
  • NN1-09S09ANR: 9V / 111mA output
  • NN1-12S3V3ANR3: 3.3V / 303mA output
  • NN1-12S05ANR3: 5V / 200mA output
  • NN1-12S09ANR3: 9V / 111mA output
  • NN1-12S12ANR3: 12V / 84mA output
  • NN1-12S15ANR3: 15V / 67mA output
  • NN1-12S24ANR3: 24V / 42mA output
  • NN1-15S05ANR3: 5V / 200mA output
  • NN1-15S12ANR3: 12V / 84mA output
  • NN1-15S15ANR3: 15V / 67mA output
  • NN1-24S3V3ANR3: 3.3V / 303mA output
  • NN1-24S05ANR3: 5V / 200mA output
  • NN1-24S09ANR3: 9V / 111mA output
  • NN1-24S12ANR3: 12V / 84mA output
  • NN1-24S15ANR3: 15V / 67mA output
  • NN1-24S24ANR3: 24V / 42mA output

Datasheet, samples and OEM/ODM support available on request.

Variant specification table
Part NumberPowerInput VoltageOutput VoltageOutput CurrentIsolation VoltageSizePackageNo. of Outputs
NN1-3V3S3V3ANR31W2.97-3.633.3V303mA1500vdc11.5*6*10SIP1
NN1-3V3S05ANR31W2.97-3.635V200mA1500vdc11.5*6*10SIP1
NN1-3V3S12ANR31W2.97-3.6312V84mA1500vdc11.5*6*10SIP1
NN1-3V3S15ANR31W2.97-3.6315V67mA1500vdc11.5*6*10SIP1
NN1-3V3S24ANR31W2.97-3.6324V42mA1500vdc11.5*6*10SIP1
NN1-05S3V3ANR31W4.5-5.53.3V303mA1500vdc11.5*6*10SIP1
NN1-05S05ANR31W4.5-5.55V200mA1500vdc11.5*6*10SIP1
NN1-05S09ANR31W4.5-5.59V111mA1500vdc11.5*6*10SIP1
NN1-05S12ANR31W4.5-5.512V84mA1500vdc11.5*6*10SIP1
NN1-05S15ANR31W4.5-5.515V67mA1500vdc11.5*6*10SIP1
NN1-05S24ANR31W4.5-5.524V42mA1500vdc11.5*6*10SIP1
NN1-09S09ANR1W8.1-9.99V111mA1500vdc11.5*6*10SIP1
NN1-12S3V3ANR31W10.8-13.23.3V303mA1500vdc11.5*6*10SIP1
NN1-12S05ANR31W10.8-13.25V200mA1500vdc11.5*6*10SIP1
NN1-12S09ANR31W10.8-13.29V111mA1500vdc11.5*6*10SIP1
NN1-12S12ANR31W10.8-13.212V84mA1500vdc11.5*6*10SIP1
NN1-12S15ANR31W10.8-13.215V67mA1500vdc11.5*6*10SIP1
NN1-12S24ANR31W10.8-13.224V42mA1500vdc11.5*6*10SIP1
NN1-15S05ANR31W13.5-16.55V200mA1500vdc11.5*6*10SIP1
NN1-15S12ANR31W13.5-16.512V84mA1500vdc11.5*6*10SIP1
NN1-15S15ANR31W13.5-16.515V67mA1500vdc11.5*6*10SIP1
NN1-24S3V3ANR31W21.6-26.43.3V303mA1500vdc11.5*6*10SIP1
NN1-24S05ANR31W21.6-26.45V200mA1500vdc11.5*6*10SIP1
NN1-24S09ANR31W21.6-26.49V111mA1500vdc11.5*6*10SIP1
NN1-24S12ANR31W21.6-26.412V84mA1500vdc11.5*6*10SIP1
NN1-24S15ANR31W21.6-26.415V67mA1500vdc11.5*6*10SIP1
NN1-24S24ANR31W21.6-26.424V42mA1500vdc11.5*6*10SIP1
Total 27 models in this series
nn1-xxsxxanr3-datasheet-1.pdfPDF · 1,5 Mo
Open in new tabDownload

Loading preview…

The preview is loaded when this tab is opened. Use the buttons above to open the file in a new tab or save it.

Input Voltage (VAC&VDC)

10.8-13.2, 13.5-16.5, 2.97-3.63, 21.6-26.4, 4.5-5.5, 8.1-9.9

Power (W)

1w

Isolation Voltage (VAC)

1500vdc

Output Voltage (VDC)

12, 15, 24, 3.3, 5, 9

Output Current (mA)

111, 200, 303, 42, 67, 84

Size (mm)

11.5x6x10 mm

Package

SIP

No of Outputs

1
