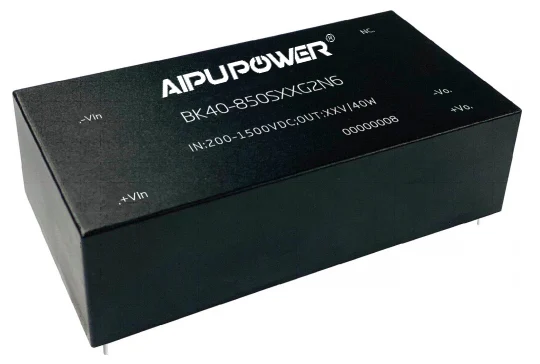

BK40-850SXXG2N6
BK40-850SXXG2N6 series power module power module, 6 model(s).
The BK40-850SXXG2N6 series is a family of power module power modules rated 40w with wide input 200-1500.
- BK40-850S12G2N6: 12V / 3333mA output (40wW)
- BK40-850S24G2N6: 24V / 1667mA output
- BK40-850S28G2N6: 28V / 1428mA output
- BK40-850S32G2N6: 32V / 1250mA output
- BK40-850S35G2N6: 35V / 1150mA output
- BK40-850S37G2N6: 37V / 1081mA output
Datasheet, samples and OEM/ODM support available on request.
| Part Number | Power | Input Voltage | Output Voltage | Output Current | Isolation Voltage | Size | Package | No. of Outputs |
|---|---|---|---|---|---|---|---|---|
| BK40-850S12G2N6 | 40W | 200-1500 | 12V | 3333mA | 4000vac | 127*67*36 | DIP | 1 |
| BK40-850S24G2N6 | 40W | 200-1500 | 24V | 1667mA | 4000vac | 127*67*36 | DIP | 1 |
| BK40-850S28G2N6 | 40W | 200-1500 | 28V | 1428mA | 4000vac | 127*67*36 | DIP | 1 |
| BK40-850S32G2N6 | 40W | 200-1500 | 32V | 1250mA | 4000vac | 127*67*36 | DIP | 1 |
| BK40-850S35G2N6 | 40W | 200-1500 | 35V | 1150mA | 4000vac | 127*67*36 | DIP | 1 |
| BK40-850S37G2N6 | 40W | 200-1500 | 37V | 1081mA | 4000vac | 127*67*36 | DIP | 1 |
| Total | 6 models in this series | |||||||
