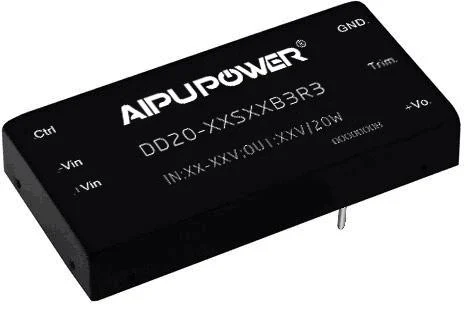

DD20-XXSXXB3R3
DD20-XXSXXB3R3 series DC-DC DIP power module, 11 model(s).
The DD20-XXSXXB3R3 series is a family of DC-DC DIP power modules rated 13.2w / 20W / 20w with wide input 9-36.
- DD20-18S3V3B3R3: 3.3V / 4000mA output (13.2wW)
- DD20-18S05B3R3: 5V / 4000mA output (20WW)
- DD20-18S09B3R3: 9V / 2222mA output
- DD20-18S12B3R3: 12V / 1667mA output
- DD20-18S15B3R3: 15V / 1333mA output
- DD20-18S18B3R3: 18V / 1111mA output
- DD20-18S24B3R3: 24V / 833mA output
- DD20-18S28B3R3: 28V / 714mA output
- DD20-36S3V3B3R3: 3.3V / 4000mA output (13.2wW)
- DD20-36S05B3R3: 5V / 4000mA output (20wW)
- DD20-36S09B3R3: 9V / 2222mA output
Datasheet, samples and OEM/ODM support available on request.
| Part Number | Power | Input Voltage | Output Voltage | Output Current | Isolation Voltage | Size | Package | No. of Outputs |
|---|---|---|---|---|---|---|---|---|
| DD20-18S3V3B3R3 | 13.2W | 9-36 | 3.3V | 4000mA | 3000vdc | 50.8X25.4X11.8 mm | DIP | 1 |
| DD20-18S05B3R3 | 20W | 9-36 | 5V | 4000mA | 3000vdc | 50.8X25.4X11.8 mm | DIP | 1 |
| DD20-18S09B3R3 | 20W | 9-36 | 9V | 2222mA | 3000vdc | 50.8X25.4X11.8 mm | DIP | 1 |
| DD20-18S12B3R3 | 20W | 9-36 | 12V | 1667mA | 3000vdc | 50.8X25.4X11.8 mm | DIP | 1 |
| DD20-18S15B3R3 | 20W | 9-36 | 15V | 1333mA | 3000vdc | 50.8X25.4X11.8 mm | DIP | 1 |
| DD20-18S18B3R3 | 20W | 9-36 | 18V | 1111mA | 3000vdc | 50.8X25.4X11.8 mm | DIP | 1 |
| DD20-18S24B3R3 | 20W | 9-36 | 24V | 833mA | 3000vdc | 50.8X25.4X11.8 mm | DIP | 1 |
| DD20-18S28B3R3 | 20W | 9-36 | 28V | 714mA | 3000vdc | 50.8X25.4X11.8 mm | DIP | 1 |
| DD20-36S3V3B3R3 | 13.2W | 18-75 | 3.3V | 4000mA | 3000vdc | 50.8X25.4X11.8 mm | DIP | 1 |
| DD20-36S05B3R3 | 20W | 18-75 | 5V | 4000mA | 3000vdc | 50.8X25.4X11.8 mm | DIP | 1 |
| DD20-36S09B3R3 | 20W | 18-75 | 9V | 2222mA | 3000vdc | 50.8X25.4X11.8 mm | DIP | 1 |
| Total | 11 models in this series | |||||||
