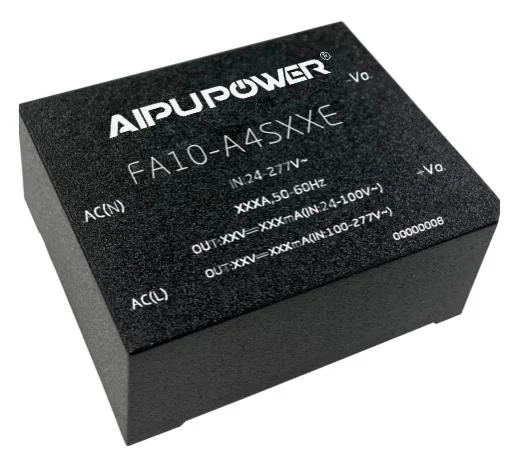

FA10-A4SXXE
FA10-A4SXXE series AC-DC enclosed power module, 5 model(s).
The FA10-A4SXXE series is a family of AC-DC enclosed power modules rated 10w with wide input 21.6-305VAC/18-430VDC.
- FA10-A4S05E: 5V / 2000mA output (10wW)
- FA10-A4S09E: 9V / 111mA output
- FA10-A4S12E: 12V / 833mA output
- FA10-A4S15E: 15V / 677mA output
- FA10-A4S24E: 24V / 417mA output
Datasheet, samples and OEM/ODM support available on request.
| Part Number | Power | Input Voltage | Output Voltage | Output Current | Isolation Voltage | Size | Package | No. of Outputs |
|---|---|---|---|---|---|---|---|---|
| FA10-A4S05E | 10W | 21.6-305VAC/18-430VDC | 5V | 2000mA | 4000 | 55.00x45.00x21.00 mm | DIP | 1 |
| FA10-A4S09E | 10W | 21.6-305VAC/18-430VDC | 9V | 111mA | 4000 | 55.00x45.00x21.00 mm | DIP | 1 |
| FA10-A4S12E | 10W | 21.6-305VAC/18-430VDC | 12V | 833mA | 4000 | 55.00x45.00x21.00 mm | DIP | 1 |
| FA10-A4S15E | 10W | 21.6-305VAC/18-430VDC | 15V | 677mA | 4000 | 55.00x45.00x21.00 mm | DIP | 1 |
| FA10-A4S24E | 10W | 21.6-305VAC/18-430VDC | 24V | 417mA | 4000 | 55.00x45.00x21.00 mm | DIP | 1 |
| Total | 5 models in this series | |||||||
Loading preview…
The preview is loaded when this tab is opened. Use the buttons above to open the file in a new tab or save it.
|
Related products
Add to Quote
This product has multiple variants. The options may be chosen on the product page

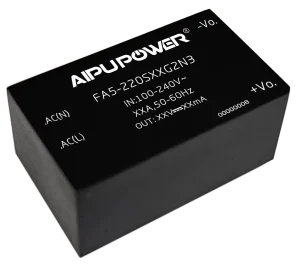

FA5-220SXXG2N3
Add to Quote
This product has multiple variants. The options may be chosen on the product page

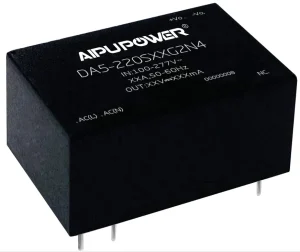

DA5-220SXXG2N4
