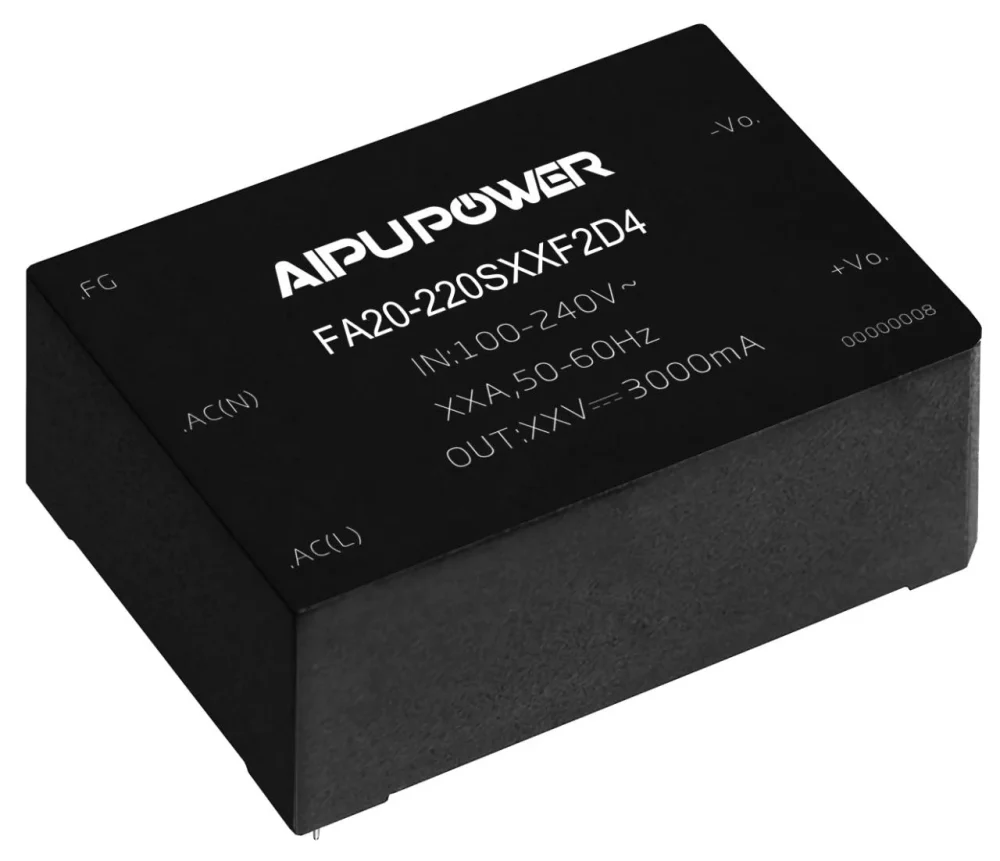

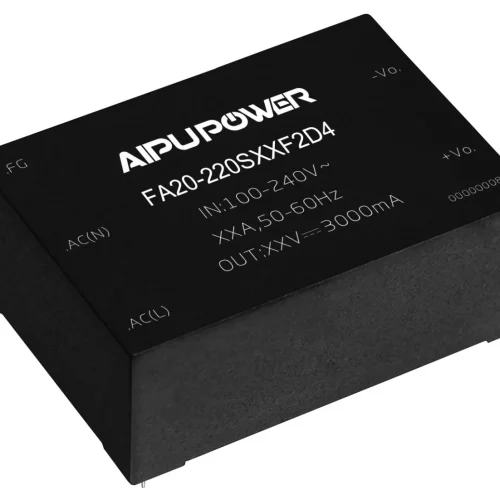

FA20-220SXXF2D4
FA20-220SXXF2D4 series AC-DC enclosed power module, 6 model(s).
The FA20-220SXXF2D4 series is a family of AC-DC enclosed power modules rated 20w / 17.5w with wide input 85-265vac /120-380vdc.
- FA20-220S3V6F2D4: 3.6V / 5500mA output (20wW)
- FA20-220S05F2D4: 5V / 3500mA output (17.5wW)
- FA20-220S09F2D4: 9V / 2222mA output (20wW)
- FA20-220S12F2D4: 12V / 1666mA output
- FA20-220S24F2D4: 24V / 833mA output
- FA20-220S28F2D4: 28V / 714mA output
Datasheet, samples and OEM/ODM support available on request.
| Part Number | Power | Input Voltage | Output Voltage | Output Current | Isolation Voltage | Size | Package | No. of Outputs |
|---|---|---|---|---|---|---|---|---|
| FA20-220S3V6F2D4 | 20W | 85-265vac /120-380vdc | 3.6V | 5500mA | 4000 | 62*45*22.5 | DIP | 1 |
| FA20-220S05F2D4 | 17.5W | 85-265vac /120-380vdc | 5V | 3500mA | 4000 | 62*45*22.5 | DIP | 1 |
| FA20-220S09F2D4 | 20W | 85-265vac /120-380vdc | 9V | 2222mA | 4000 | 62*45*22.5 | DIP | 1 |
| FA20-220S12F2D4 | 20W | 85-265vac /120-380vdc | 12V | 1666mA | 4000 | 62*45*22.5 | DIP | 1 |
| FA20-220S24F2D4 | 20W | 85-265vac /120-380vdc | 24V | 833mA | 4000 | 62*45*22.5 | DIP | 1 |
| FA20-220S28F2D4 | 20W | 85-265vac /120-380vdc | 28V | 714mA | 4000 | 62*45*22.5 | DIP | 1 |
| Total | 6 models in this series | |||||||
