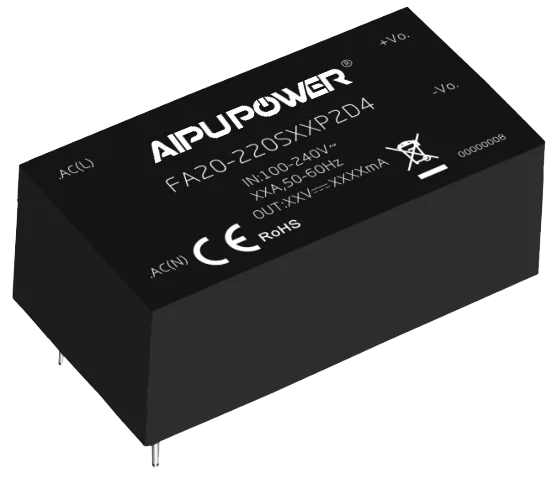

FA20-220SXXP2D4
FA20-220SXXP2D4 series AC-DC enclosed power module, 6 model(s).
The FA20-220SXXP2D4 series is a family of AC-DC enclosed power modules rated 20w with wide input 85-265vac /120-380vdc.
- FA20-220S05P2D4: 5V / 4000mA output (20wW)
- FA20-220S09P2D4: 9V / 2222mA output
- FA20-220S12P2D4: 12V / 1666mA output
- FA20-220S15P2D4: 15V / 1333mA output
- FA20-220S24P2D4: 24V / 833mA output
- FA20-220S48P2D4: 48V / 416mA output
Datasheet, samples and OEM/ODM support available on request.
| Part Number | Power | Input Voltage | Output Voltage | Output Current | Isolation Voltage | Size | Package | No. of Outputs |
|---|---|---|---|---|---|---|---|---|
| FA20-220S05P2D4 | 20W | 85-265vac /120-380vdc | 5V | 4000mA | 4000 | 53.8*28.8*23.5 | DIP | 1 |
| FA20-220S09P2D4 | 20W | 85-265vac /120-380vdc | 9V | 2222mA | 4000 | 53.8*28.8*23.5 | DIP | 1 |
| FA20-220S12P2D4 | 20W | 85-265vac /120-380vdc | 12V | 1666mA | 4000 | 53.8*28.8*23.5 | DIP | 1 |
| FA20-220S15P2D4 | 20W | 85-265vac /120-380vdc | 15V | 1333mA | 4000 | 53.8*28.8*23.5 | DIP | 1 |
| FA20-220S24P2D4 | 20W | 85-265vac /120-380vdc | 24V | 833mA | 4000 | 53.8*28.8*23.5 | DIP | 1 |
| FA20-220S48P2D4 | 20W | 85-265vac /120-380vdc | 48V | 416mA | 4000 | 53.8*28.8*23.5 | DIP | 1 |
| Total | 6 models in this series | |||||||
