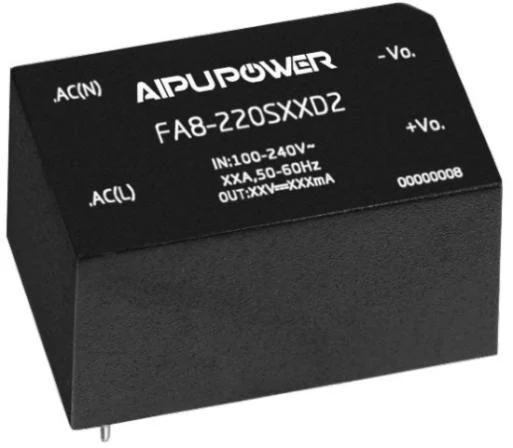

FA8-220SXXD2
FA8-220SXXD2 series AC-DC enclosed power module, 6 model(s).
The FA8-220SXXD2 series is a family of AC-DC enclosed power modules rated 6.6w / 6.5w / 8w with wide input 85-265vac /120-380vdc.
- FA8-220S3V3D2: 3.3V / 2000mA output (6.6wW)
- FA8-220S3V6D2: 3.6V / 1800mA output (6.5wW)
- FA8-220S3V8D2: 3.8V / 1700mA output
- FA8-220S05D2: 5V / 1600mA output (8wW)
- FA8-220S12D2: 12V / 667mA output
- FA8-220S24D2: 24V / 333mA output
Datasheet, samples and OEM/ODM support available on request.
| Part Number | Power | Input Voltage | Output Voltage | Output Current | Isolation Voltage | Size | Package | No. of Outputs |
|---|---|---|---|---|---|---|---|---|
| FA8-220S3V3D2 | 6.6W | 85-265vac /120-380vdc | 3.3V | 2000mA | 3000 | 39*25*22 | DIP | 1 |
| FA8-220S3V6D2 | 6.5W | 85-265vac /120-380vdc | 3.6V | 1800mA | 3000 | 39*25*22 | DIP | 1 |
| FA8-220S3V8D2 | 6.5W | 85-265vac /120-380vdc | 3.8V | 1700mA | 3000 | 39*25*22 | DIP | 1 |
| FA8-220S05D2 | 8W | 85-265vac /120-380vdc | 5V | 1600mA | 3000 | 39*25*22 | DIP | 1 |
| FA8-220S12D2 | 8W | 85-265vac /120-380vdc | 12V | 667mA | 3000 | 39*25*22 | DIP | 1 |
| FA8-220S24D2 | 8W | 85-265vac /120-380vdc | 24V | 333mA | 3000 | 39*25*22 | DIP | 1 |
| Total | 6 models in this series | |||||||
