FW2-XXDXXD

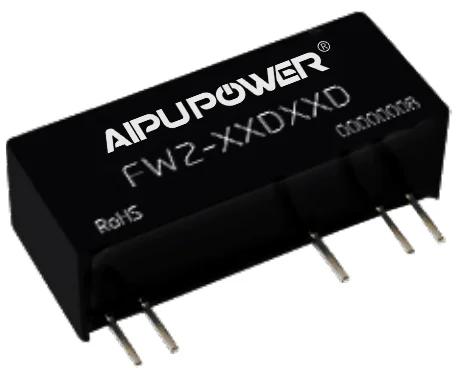

FW2-XXDXXD series DC-DC SIP power module, 9 model(s).
The FW2-XXDXXD series is a family of DC-DC SIP power modules rated 2w with wide input 4.75-5.25.
- FW2-05D05D: ±5V / ±200mA output (2wW)
- FW2-05D12D: ±12V / ±84mA output
- FW2-05D15D: ±15V / ±67mA output
- FW2-12D05D: ±5V / ±200mA output
- FW2-12D12D: ±12V / ±84mA output
- FW2-12D15D: ±15V / ±67mA output
- FW2-24D24D: ±5V / ±200mA output
- FW2-24D12D: ±12V / ±84mA output
- FW2-24D15D: ±15V / ±67mA output
Datasheet, samples and OEM/ODM support available on request.
| Part Number | Power | Input Voltage | Output Voltage | Output Current | Isolation Voltage | Size | Package | No. of Outputs |
|---|---|---|---|---|---|---|---|---|
| FW2-05D05D | 2W | 4.75-5.25 | ±5 | ±200mA | 1500 | 27.5*9.5*12 | SIP | 2 |
| FW2-05D12D | 2W | 4.75-5.25 | ±12 | ±84mA | 1500 | 27.5*9.5*12 | SIP | 2 |
| FW2-05D15D | 2W | 4.75-5.25 | ±15 | ±67mA | 1500 | 27.5*9.5*12 | SIP | 2 |
| FW2-12D05D | 2W | 11.4-12.6 | ±5 | ±200mA | 1500 | 27.5*9.5*12 | SIP | 2 |
| FW2-12D12D | 2W | 11.4-12.6 | ±12 | ±84mA | 1500 | 27.5*9.5*12 | SIP | 2 |
| FW2-12D15D | 2W | 11.4-12.6 | ±15 | ±67mA | 1500 | 27.5*9.5*12 | SIP | 2 |
| FW2-24D24D | 2W | 22.8-25.2 | ±5 | ±200mA | 1500 | 27.5*9.5*12 | SIP | 2 |
| FW2-24D12D | 2W | 22.8-25.2 | ±12 | ±84mA | 1500 | 27.5*9.5*12 | SIP | 2 |
| FW2-24D15D | 2W | 22.8-25.2 | ±15 | ±67mA | 1500 | 27.5*9.5*12 | SIP | 2 |
| Total | 9 models in this series | |||||||
