NN2-XXXXXF3N series DC-DC DIP power module, 20 model(s).

Model

Clear

Quick Inquiry

SKU: NN2-XXXXXF3N Category: DC-DC DIP

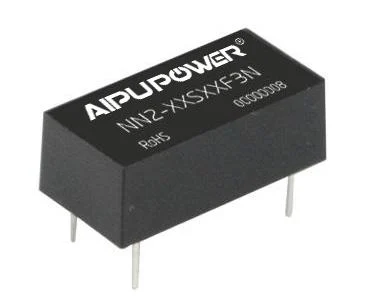

The NN2-XXXXXF3N series is a family of DC-DC DIP power modules rated 2w with wide input 4.5-5.5.

NN2-05S3V3F3N: 3.3V / 400mA output (2wW)
NN2-05S05F3N: 5V / 400mA output
NN2-05S12F3N: 12V / 167mA output
NN2-05S15F3N: 15V / 133mA output
NN2-05S24F3N: 24V / 83mA output
NN2-12S05F3N: 5V / 200mA output
NN2-12S12F3N: 12V / 83mA output
NN2-12S15F3N: 15V / 67mA output
NN2-24S05F3N: 5V / 200mA output
NN2-24S12F3N: 12V / 83mA output
NN2-24S15F3N: 15V / 67mA output
NN2-05D05F3N: +-5V / +-100mA output
NN2-05D12F3N: +-12V / +-42mA output
NN2-05D15F3N: +-15V / +-34mA output
NN2-12D05F3N: +-5V / +-100mA output
NN2-12D12F3N: +-12V / +-42mA output
NN2-12D15F3N: +-15V / +-34mA output
NN2-24D05F3N: +-5V / +-100mA output
NN2-24D12F3N: +-12V / +-42mA output
NN2-24D15F3N: +-15V / +-34mA output

Datasheet, samples and OEM/ODM support available on request.

Part Number	Power	Input Voltage	Output Voltage	Output Current	Isolation Voltage	Size	Package	No. of Outputs
NN2-05S3V3F3N	2W	4.5-5.5	3.3V	400mA	3000vdc	20.00× 10.00 × 6.80 mm	DIP	1 &2
NN2-05S05F3N	2W	4.5-5.5	5V	400mA	3000vdc	20.00× 10.00 × 6.80 mm	DIP	1 &2
NN2-05S12F3N	2W	4.5-5.5	12V	167mA	3000vdc	20.00× 10.00 × 6.80 mm	DIP	1 &2
NN2-05S15F3N	2W	4.5-5.5	15V	133mA	3000vdc	20.00× 10.00 × 6.80 mm	DIP	1 &2
NN2-05S24F3N	2W	4.5-5.5	24V	83mA	3000vdc	20.00× 10.00 × 6.80 mm	DIP	1 &2
NN2-12S05F3N	2W	10.8-13.2	5V	200mA	3000vdc	20.00× 10.00 × 6.80 mm	DIP	1 &2
NN2-12S12F3N	2W	10.8-13.2	12V	83mA	3000vdc	20.00× 10.00 × 6.80 mm	DIP	1 &2
NN2-12S15F3N	2W	10.8-13.2	15V	67mA	3000vdc	20.00× 10.00 × 6.80 mm	DIP	1 &2
NN2-24S05F3N	2W	21.6-26.4	5V	200mA	3000vdc	20.00× 10.00 × 6.80 mm	DIP	1 &2
NN2-24S12F3N	2W	21.6-26.4	12V	83mA	3000vdc	20.00× 10.00 × 6.80 mm	DIP	1 &2
NN2-24S15F3N	2W	21.6-26.4	15V	67mA	3000vdc	20.00× 10.00 × 6.80 mm	DIP	1 &2
NN2-05D05F3N	2W	4.5-5.5	+-5	+-100mA	3000vdc	20.00× 10.00 × 6.80 mm	DIP	1 &2
NN2-05D12F3N	2W	4.5-5.5	+-12	+-42mA	3000vdc	20.00× 10.00 × 6.80 mm	DIP	1 &2
NN2-05D15F3N	2W	4.5-5.5	+-15	+-34mA	3000vdc	20.00× 10.00 × 6.80 mm	DIP	1 &2
NN2-12D05F3N	2W	10.8-13.2	+-5	+-100mA	3000vdc	20.00× 10.00 × 6.80 mm	DIP	1 &2
NN2-12D12F3N	2W	10.8-13.2	+-12	+-42mA	3000vdc	20.00× 10.00 × 6.80 mm	DIP	1 &2
NN2-12D15F3N	2W	10.8-13.2	+-15	+-34mA	3000vdc	20.00× 10.00 × 6.80 mm	DIP	1 &2
NN2-24D05F3N	2W	21.6-26.4	+-5	+-100mA	3000vdc	20.00× 10.00 × 6.80 mm	DIP	1 &2
NN2-24D12F3N	2W	21.6-26.4	+-12	+-42mA	3000vdc	20.00× 10.00 × 6.80 mm	DIP	1 &2
NN2-24D15F3N	2W	21.6-26.4	+-15	+-34mA	3000vdc	20.00× 10.00 × 6.80 mm	DIP	1 &2
Total	20 models in this series

nn2-xxxxxf3n-datasheet-1.pdfPDF · 778.7 KB

Open in new tab Download

Loading preview…

The preview is loaded when this tab is opened. Use the buttons above to open the file in a new tab or save it.

Input Voltage (VAC&VDC)	10.8-13.2, 21.6-26.4, 4.5-5.5
Power (W)	2w
Isolation Voltage (VAC)	3000vdc
Output Voltage (VDC)	±12, ±15, ±5, 12, 15, 24, 3.3, 5
Output Current (mA)	±100, ±34, ±42, 133, 167, 200, 400, 67, 83
Size (mm)	20.00×10.00×6.80 mm
Package	DIP
No of Outputs	1 & 2
