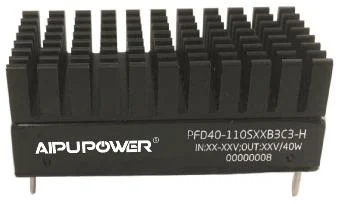

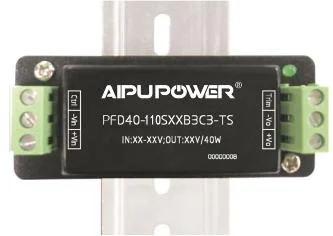

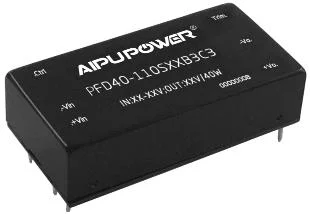

PFD40-110SXXB3C3
PFD40-110SXXB3C3 series DC-DC DIP power module, 6 model(s).
The PFD40-110SXXB3C3 series is a family of DC-DC DIP power modules rated 33W / 40W with wide input 40-160.
- PFD40-110S3V3B3C3: 3.3V / 10000mA output (33WW)
- PFD40-110S05B3C3: 5V / 8000mA output (40WW)
- PFD40-110S12B3C3: 12V / 3333mA output
- PFD40-110S15B3C3: 15V / 2667mA output
- PFD40-110S24B3C3: 24V / 1667mA output
- PFD40-110S48B3C3: 48V / 833mA output
Datasheet, samples and OEM/ODM support available on request.
| Part Number | Power | Input Voltage | Output Voltage | Output Current | Isolation Voltage | Size | Package | No. of Outputs |
|---|---|---|---|---|---|---|---|---|
| PFD40-110S3V3B3C3 | 33W | 40-160 | 3.3V | 10000mA | 3000vdc/1500vac | 50.8 X 25.4 X 11.8 mm | DIP | 1 |
| PFD40-110S05B3C3 | 40W | 40-160 | 5V | 8000mA | 3000vdc/1500vac | 50.8 X 25.4 X 11.8 mm | DIP | 1 |
| PFD40-110S12B3C3 | 40W | 40-160 | 12V | 3333mA | 3000vdc/1500vac | 50.8 X 25.4 X 11.8 mm | DIP | 1 |
| PFD40-110S15B3C3 | 40W | 40-160 | 15V | 2667mA | 3000vdc/1500vac | 50.8 X 25.4 X 11.8 mm | DIP | 1 |
| PFD40-110S24B3C3 | 40W | 40-160 | 24V | 1667mA | 3000vdc/1500vac | 50.8 X 25.4 X 11.8 mm | DIP | 1 |
| PFD40-110S48B3C3 | 40W | 40-160 | 48V | 833mA | 3000vdc/1500vac | 50.8 X 25.4 X 11.8 mm | DIP | 1 |
| Total | 6 models in this series | |||||||
