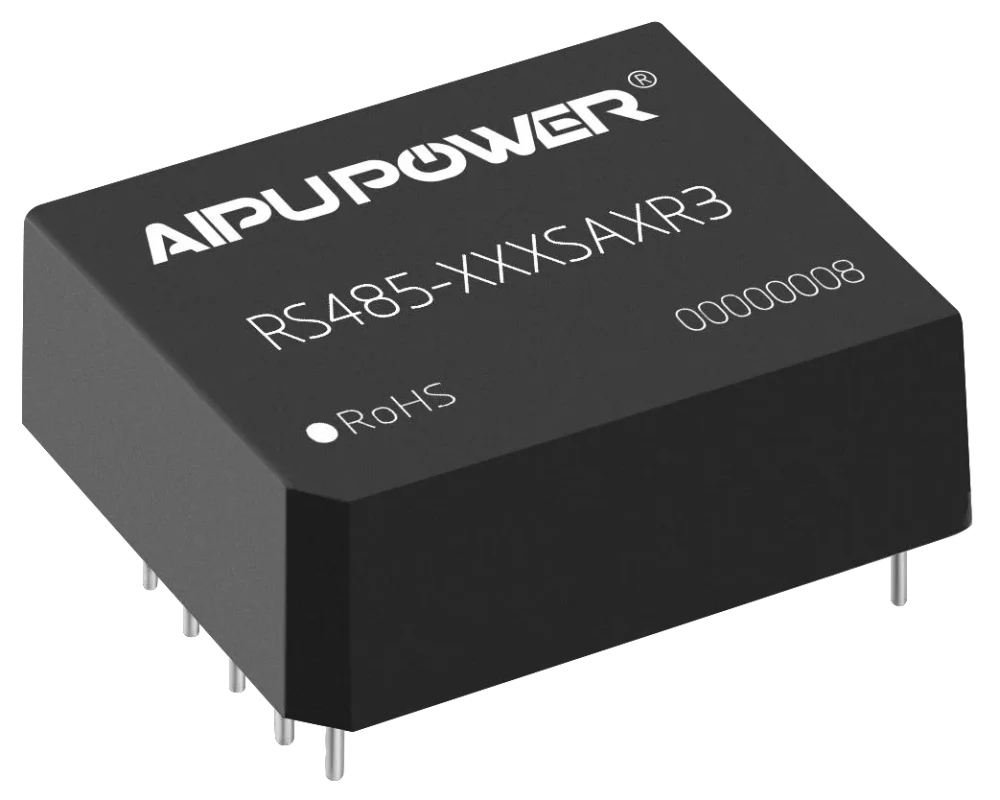

RS485-XXXSAXR3
RS485-XXXSAXR3 series power module power module, 8 model(s).
The RS485-XXXSAXR3 series is a family of power module power modules rated 3.15-3.45W / 4.75-5.25W with wide input 3.3.
- RS485-3V3LSAR3: 500kV / 256mA output (3.15-3.45W)
- RS485-3V3LSAVR3: V / mA output
- RS485-05LSAR3: V / mA output (4.75-5.25W)
- RS485-05LSAVR3: V / mA output
- RS485-3V3HSAR3: V / mA output (3.15-3.45W)
- RS485-3V3HSAVR3: V / mA output
- RS485-05HSAR3: V / mA output (4.75-5.25W)
- RS485-05HSAVR3: V / mA output
Datasheet, samples and OEM/ODM support available on request.
| Part Number | Power | Input Voltage | Output Voltage | Output Current | Isolation Voltage | Size | Package | No. of Outputs |
|---|---|---|---|---|---|---|---|---|
| RS485-3V3LSAR3 | 3.15-3.45W | 3.15-3.45 | 3.3 | 256mA | 2500vdc | 20X17X7 | wiring | 1 |
| RS485-3V3LSAVR3 | 3.15-3.45W | 3.15-3.45 | 3.3 | 256mA | 2500vdc | 20X17X7 | wiring | 1 |
| RS485-05LSAR3 | 4.75-5.25W | 4.75-5.25 | 5 | 256mA | 2500vdc | 20X17X7 | wiring | 1 |
| RS485-05LSAVR3 | 4.75-5.25W | 4.75-5.25 | 5 | 256mA | 2500vdc | 20X17X7 | wiring | 1 |
| RS485-3V3HSAR3 | 3.15-3.45W | 3.15-3.45 | 3.3 | 256mA | 2500vdc | 20X17X7 | wiring | 1 |
| RS485-3V3HSAVR3 | 3.15-3.45W | 3.15-3.45 | 3.3 | 256mA | 2500vdc | 20X17X7 | wiring | 1 |
| RS485-05HSAR3 | 4.75-5.25W | 4.75-5.25 | 5 | 256mA | 2500vdc | 20X17X7 | wiring | 1 |
| RS485-05HSAVR3 | 4.75-5.25W | 4.75-5.25 | 5 | 256mA | 2500vdc | 20X17X7 | wiring | 1 |
| Total | 8 models in this series | |||||||
