NN3-XXXXXC4N

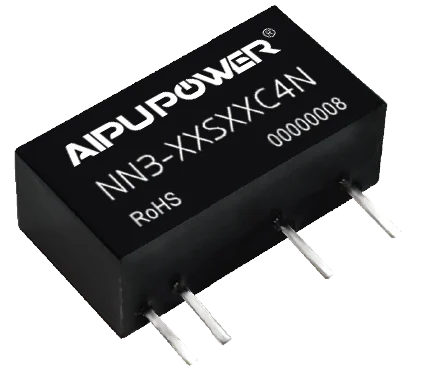

NN3-XXXXXC4N series DC-DC SIP power module, 11 model(s).
The NN3-XXXXXC4N series is a family of DC-DC SIP power modules rated 3w with wide input 4.5-5.5.
- NN3-05S05C4N: 5V / 600mA output (3wW)
- NN3-05S12C4N: 12V / 250mA output
- NN3-05S15C4N: 15V / 200mA output
- NN3-12S05C4N: 5V / 600mA output
- NN3-12S12C4N: 12V / 250mA output
- NN3-12S15C4N: 15V / 200mA output
- NN3-12S24C4N: 24V / 125mA output
- NN3-24S05C4N: 5V / 600mA output
- NN3-24S12C4N: 12V / 250mA output
- NN3-24S15C4N: 15V / 200mA output
- NN3-24S24C4N: 24V / 125mA output
Datasheet, samples and OEM/ODM support available on request.
| Part Number | Power | Input Voltage | Output Voltage | Output Current | Isolation Voltage | Size | Package | No. of Outputs |
|---|---|---|---|---|---|---|---|---|
| NN3-05S05C4N | 3W | 4.5-5.5 | 5V | 600mA | 4000vdc | 19.50× 7.00 × 10.10 mm | SIP | 1 |
| NN3-05S12C4N | 3W | 4.5-5.5 | 12V | 250mA | 4000vdc | 19.50× 7.00 × 10.10 mm | SIP | 1 |
| NN3-05S15C4N | 3W | 4.5-5.5 | 15V | 200mA | 4000vdc | 19.50× 7.00 × 10.10 mm | SIP | 1 |
| NN3-12S05C4N | 3W | 10.8-13.2 | 5V | 600mA | 4000vdc | 19.50× 7.00 × 10.10 mm | SIP | 1 |
| NN3-12S12C4N | 3W | 10.8-13.2 | 12V | 250mA | 4000vdc | 19.50× 7.00 × 10.10 mm | SIP | 1 |
| NN3-12S15C4N | 3W | 10.8-13.2 | 15V | 200mA | 4000vdc | 19.50× 7.00 × 10.10 mm | SIP | 1 |
| NN3-12S24C4N | 3W | 10.8-13.2 | 24V | 125mA | 4000vdc | 19.50× 7.00 × 10.10 mm | SIP | 1 |
| NN3-24S05C4N | 3W | 21.6-26.4 | 5V | 600mA | 4000vdc | 19.50× 7.00 × 10.10 mm | SIP | 1 |
| NN3-24S12C4N | 3W | 21.6-26.4 | 12V | 250mA | 4000vdc | 19.50× 7.00 × 10.10 mm | SIP | 1 |
| NN3-24S15C4N | 3W | 21.6-26.4 | 15V | 200mA | 4000vdc | 19.50× 7.00 × 10.10 mm | SIP | 1 |
| NN3-24S24C4N | 3W | 21.6-26.4 | 24V | 125mA | 4000vdc | 19.50× 7.00 × 10.10 mm | SIP | 1 |
| Total | 11 models in this series | |||||||
