NN3-XXXXXCN

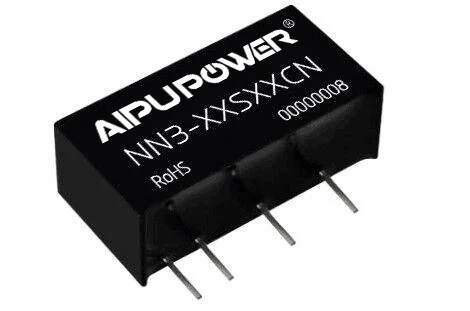

NN3-XXXXXCN series DC-DC SIP power module, 17 model(s).
The NN3-XXXXXCN series is a family of DC-DC SIP power modules rated 3w with wide input 4.5-5.5.
- NN3-05S05CN: 5V / 600mA output (3wW)
- NN3-05S09CN: 9V / 333mA output
- NN3-05S12CN: 12V / 250mA output
- NN3-05S15CN: 15V / 200mA output
- NN3-05S24CN: 24V / 125mA output
- NN3-12S05CN: 5V / 600mA output
- NN3-12S09CN: 9V / 333mA output
- NN3-12S12CN: 12V / 250mA output
- NN3-12S15CN: 15V / 200mA output
- NN3-12S20CN: 20V / 150mA output
- NN3-12S24CN: 24V / 125mA output
- NN3-15S15CN: 15V / 200mA output
- NN3-24S05CN: 5V / 600mA output
- NN3-24S09CN: 9V / 333mA output
- NN3-24S12CN: 12V / 250mA output
- NN3-24S15CN: 15V / 200mA output
- NN3-24S24CN: 24V / 125mA output
Datasheet, samples and OEM/ODM support available on request.
| Part Number | Power | Input Voltage | Output Voltage | Output Current | Isolation Voltage | Size | Package | No. of Outputs |
|---|---|---|---|---|---|---|---|---|
| NN3-05S05CN | 3W | 4.5-5.5 | 5V | 600mA | 1500vdc | 19.50 × 7.00 × 10.10mm | SIP | 1 |
| NN3-05S09CN | 3W | 4.5-5.5 | 9V | 333mA | 1500vdc | 19.50 × 7.00 × 10.10mm | SIP | 1 |
| NN3-05S12CN | 3W | 4.5-5.5 | 12V | 250mA | 1500vdc | 19.50 × 7.00 × 10.10mm | SIP | 1 |
| NN3-05S15CN | 3W | 4.5-5.5 | 15V | 200mA | 1500vdc | 19.50 × 7.00 × 10.10mm | SIP | 1 |
| NN3-05S24CN | 3W | 4.5-5.5 | 24V | 125mA | 1500vdc | 19.50 × 7.00 × 10.10mm | SIP | 1 |
| NN3-12S05CN | 3W | 10.8-13.2 | 5V | 600mA | 1500vdc | 19.50 × 7.00 × 10.10mm | SIP | 1 |
| NN3-12S09CN | 3W | 10.8-13.2 | 9V | 333mA | 1500vdc | 19.50 × 7.00 × 10.10mm | SIP | 1 |
| NN3-12S12CN | 3W | 10.8-13.2 | 12V | 250mA | 1500vdc | 19.50 × 7.00 × 10.10mm | SIP | 1 |
| NN3-12S15CN | 3W | 10.8-13.2 | 15V | 200mA | 1500vdc | 19.50 × 7.00 × 10.10mm | SIP | 1 |
| NN3-12S20CN | 3W | 10.8-13.2 | 20V | 150mA | 1500vdc | 19.50 × 7.00 × 10.10mm | SIP | 1 |
| NN3-12S24CN | 3W | 10.8-13.2 | 24V | 125mA | 1500vdc | 19.50 × 7.00 × 10.10mm | SIP | 1 |
| NN3-15S15CN | 3W | 13.5-16.5 | 15V | 200mA | 1500vdc | 19.50 × 7.00 × 10.10mm | SIP | 1 |
| NN3-24S05CN | 3W | 21.6-26.4 | 5V | 600mA | 1500vdc | 19.50 × 7.00 × 10.10mm | SIP | 1 |
| NN3-24S09CN | 3W | 21.6-26.4 | 9V | 333mA | 1500vdc | 19.50 × 7.00 × 10.10mm | SIP | 1 |
| NN3-24S12CN | 3W | 21.6-26.4 | 12V | 250mA | 1500vdc | 19.50 × 7.00 × 10.10mm | SIP | 1 |
| NN3-24S15CN | 3W | 21.6-26.4 | 15V | 200mA | 1500vdc | 19.50 × 7.00 × 10.10mm | SIP | 1 |
| NN3-24S24CN | 3W | 21.6-26.4 | 24V | 125mA | 1500vdc | 19.50 × 7.00 × 10.10mm | SIP | 1 |
| Total | 17 models in this series | |||||||
